ASE C+L Band Broadband Light Source
Name:

ASE C+L Band Broadband Light Source

Class:
Broadband ASE Light Source
Type:

ASE C+L Band Broadband Light Source Specification


Fiberer Rohs
ASE C+L Band Broadband Light Source

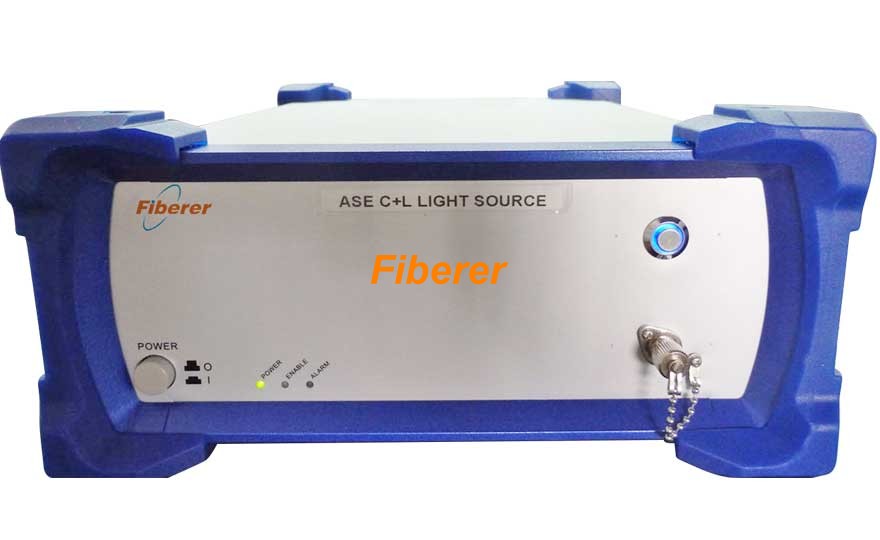

ASE C+L and 1550nm DFB Light Source (above)

ASE C+L Band Broadband Light Source

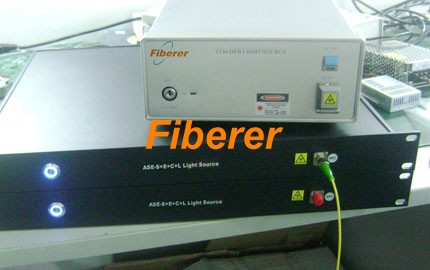

1550nm DFB and ASE E+S+C+L Band Broadband Light Source (above)

Description:
ASE C+L Band Broadband Light Source, Operating wavelength range 1525-1607nm without GFF flatness with Output power 10-21 dBm, and 1528-1600nm with GFF flatness with Output power 7-17 dBm. Power spectral density (PSD) ≥-17 dBm/nm, Degree of Polarization (DOP) ≤ 5%. OEM model is well available on customer’s special request.

Applications:
Optical fiber sensing
PLC, CWDM, DWDM, Film testing
Optical fiber grating testing
Fiber Optic Gyroscope (FOG)
Optical coherence tomography (OCT)

Features:
High output power
High spectral stability
Broadband spectrum
Low noise
Low polarization and low coherent

Specifications:

Parameters
ASE-C+L
GFF
No
GFF
Operating wavelength (nm)
1525~1607, etc
1528~1600, etc
Flatness (dB)
≤ 7
≤ 2
Output power (dBm)
10~21
7~17
Power spectral density (dBm/nm)
≥-17
Spectral stability (dB)
≤±0.05(5 min)
Output power short-term stability (dB) 1
≤±0.02(5 min)
Output power long-term stability (dB) 2
≤±0.03(8 hour)
Degree of Polarization (DOP)
≤5%
Pigtail fiber
SMF-28
Connector type
FC/PC, FC/UPC or FC/APC, etc
Operating temperature (℃)
 0 ~ +65
Storage temperature (℃)
-20 ~+70
Relative humidity (%)
20 ~ 80
Power Supply
110/220V AC, +5V DC, Driving current >500mA; △V<1%
Maximal Power Consumption
10 W
Dimensions (L×W×H, mm)
100×80×20(Module), 320×220×90(Desk-top)

Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
               1. Test condition: fixed temperature, CW.
               2. Test condition: temperature variation ±2℃, CW.

Typical Spectrum

Typical Spectrum

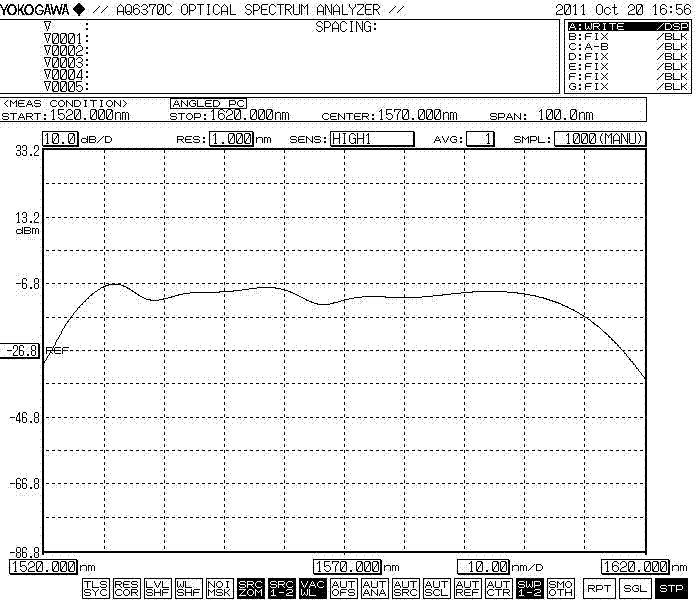

Without GFF at 10 dB Flatness (above)

Typical

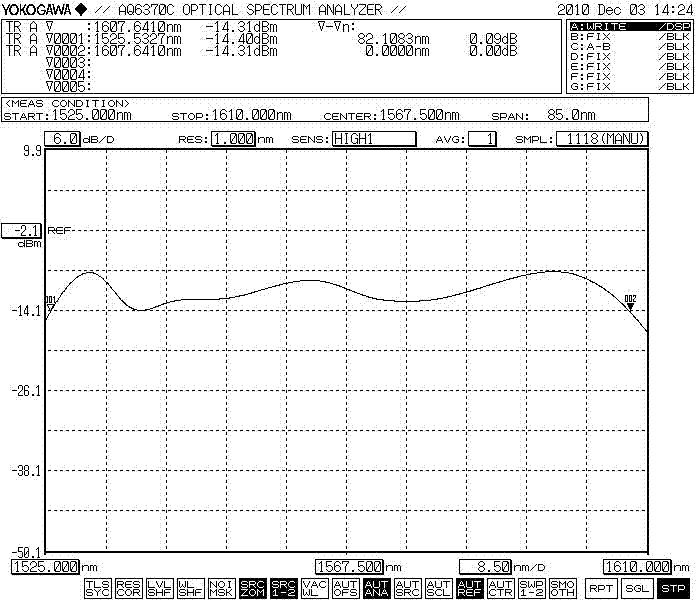

Without GFF at 6 dB Flatness (above)


Ordering Information

ASE-C+L
Package Type
GFF
Output Power
Fiber Type
Connector

M=Module
D=Desk-top
G=With GFF
N=Without GFF
10=10mW
20=20mW
etc
S=SM Fiber
P=PM Fiber
FC/UPC
FC/APC
