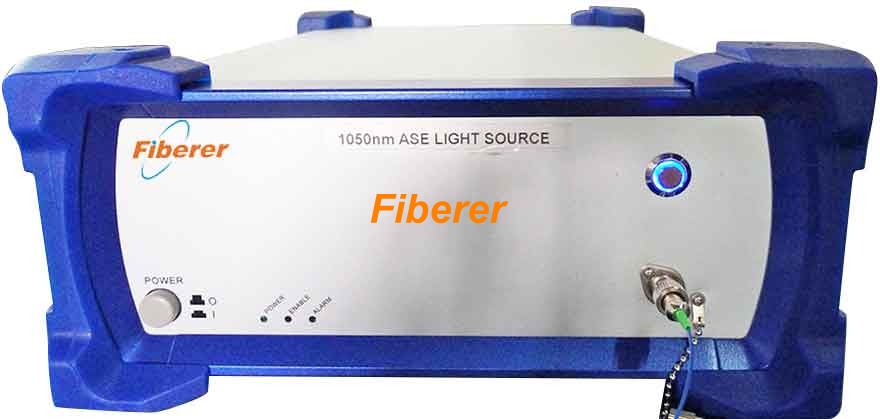

1050 ASE and 4 Channels 1310nm DFB Light Source (above)
Description:

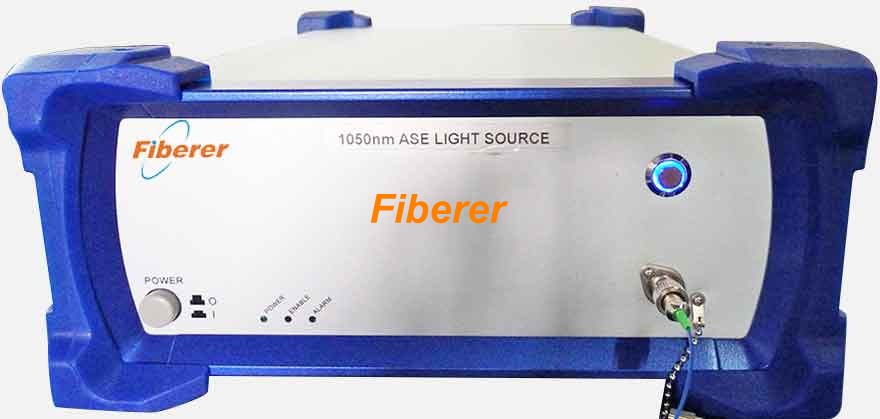

1050nm/1040nm ASE Broadband Light Source, based on Amplified Spontaneous Emission (ASE) laser diode (LD). Operating wavelength range 970 to 1110 nm with Output power 5-10 mW, or 1030 to 1070 nm with Output power 10-30 mW. Power spectral density (PSD) ≥ -17 dBm/nm. Degree of Polarization (DOP) ≤ 5%. OEM model is well available on customer’s special request.
Applications:
Optical fiber sensing
WDM, Film testing
Optical fiber grating testing
Optical fiber measurement equipments
Fiber Optic Gyroscope (FOG)
Optical coherence tomography (OCT)
Features:
High output power
High stability
Broadband spectrum output
Low noise
Low polarization and low coherent
Specifications:
|
Parameters |
ASE-1050/1040 |
|
Operating wavelength (nm) |
970~1110, etc |
1030~1070, etc |
|
Output power (mW) |
5~10 |
10~30 |
|
Power spectral density (dBm/nm) |
≥-17 |
|
Spectral stability (dB) |
≤±0.05(5 min) |
|
Output power short-term stability (dB) 1 |
≤±0.02(5 min) |
|
Output power long-term stability (dB) 2 |
≤±0.03(8 hour) |
|
Degree of Polarization (DOP) |
≤5% |
|
Pigtail fiber |
SMF-28 |
|
Connector type |
FC/PC, FC/UPC or FC/APC, etc |
|
Operating temperature (℃) |
0~+65 |
|
Storage temperature (℃) |
-20 ~+70 |
|
Relative humidity (%) |
20～80 |
|
Power Supply |
110/220V AC, +5V DC, Driving current >500mA; △V＜1% |
|
Maximal Power Consumption |
10 W |
|
Dimension (L×W×H, mm) |
100×80×20(Module), or 320×220×90(Desk-top) |

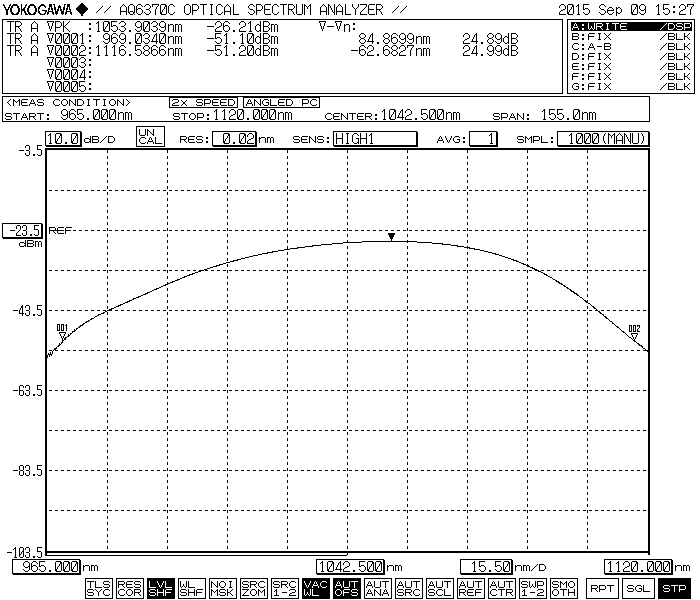

Typical Spectrum
Ordering Information
|
ASE-1050 |
Package Type |
Working Wavelength |
Output Power |
Fiber Type |
Connector |
|
|
M=Module
D=Desk-top |
A=970-1110nm
B=1030-1070nm
etc |
10=10mW
20=20mW
etc |
S=SM Fiber
P=PM Fiber
etc |
FC/UPC
FC/APC
etc |
