1390/1380nm SLED Light Source
Name:

1390/1380nm SLED Light Source

Class:
Broadband SLED Light Source
Type:

1390/1380nm SLED Light Source Specification


Fiberer Rohs

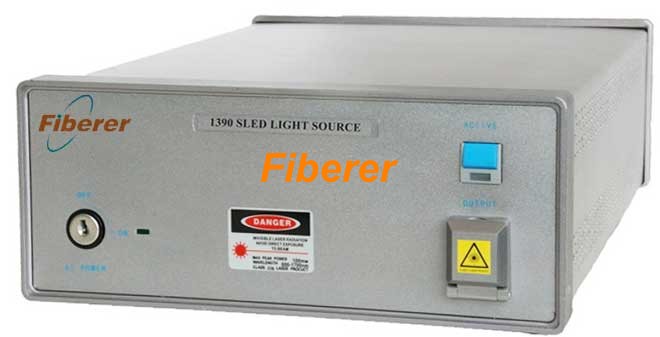

13901380nm SLED Broadband Light Source Specification
Description - 1390/1380nm SLED Light Source:
1390/1380nm SLED Broadband Light Source, Central wavelength 1390 ±10 nm, -3dB spectrum width ≥ 50 nm, Output power ≥ 5 mW, Ripple ≤0.2 dB. OEM model is well available on customer’s special request.

Applications - 1390/1380nm SLED Light Source:
Optical fiber sensing
Optical fiber passive component spectrum testing
Optical fiber grating, filter testing
Optical fiber measurement equipments

Features - 1390/1380nm SLED Light Source:
High output power
High stability
Broadband spectrum output

Specifications - 1390/1380nm SLED Light Source:
                                 Parameter
SLED
Central wavelength (nm)
1390 ±10
-3dB spectrum width (nm)
≥50, etc
Output power (mW)
≥ 5
Ripple (dB)
≤0.2
Output power short -term stability 1
≤±0.01dB/15 min
Output power long- term stability 2
≤±0.03dB/8 hour
Operating mode
CW
Fiber pigtail
Single mode SMF-28
Output connector
FC/PC, FC/UPC or FC/APC, etc
Operating temperature (℃)
0 ~ 40
Storage temperature (℃)
-20 ~ 70
Power supply
110/220V AC±10%, 50Hz, 20W
Dimensions (L×W×H, mm)
90×70×19(Module), or 320×220×90(Desk-top)
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
               1. Test condition: fixed temperature, CW.
               2. Test condition: temperature variation ±2℃, CW.

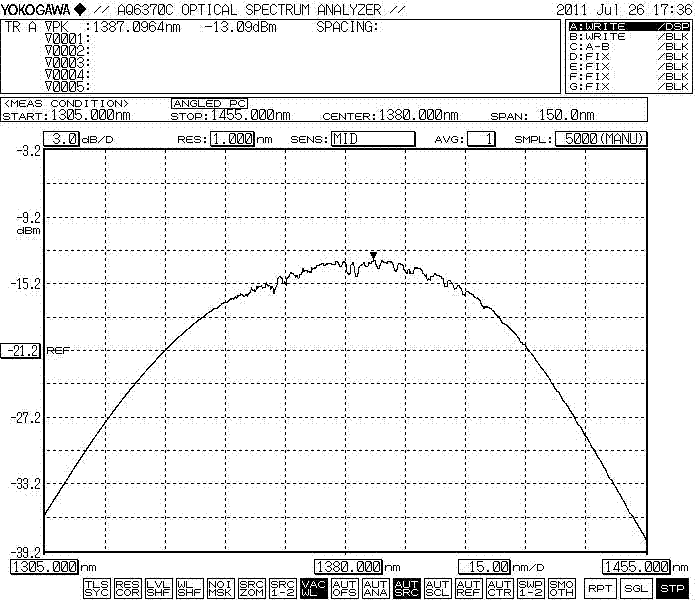

Typical Spectrum

Typical Spectrum


Ordering Information -1390/1380nm SLED Light Source
OS-S
Package Type
Operating Wavelength
Output Power
LCD Display
Power Adjustable
Fiber Type
Connector

M=Module
D=Desk-top
1310=1310nm
1390=1390nm 1550=1550nm
 etc
1=1mW    10=10mW      50=50mW
etc
0=Without
1=With
0=Without
1=With
S=SM Fiber
P=PM Fiber
M=MM Fiber
FC/UPC     FC/APC
etc




Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.
