 Product >> Broadband ASE Light Source >> 1480 2000nm ASE Broadband Light Source
1480-2000nm ASE Broadband Light Source
Name:

1480 2000nm ASE Broadband Light Source

Class:
Broadband ASE Light Source
Type:

1480-2000nm ASE Broadband Light Source Specification


Fiberer Rohs
1480-2000nm ASE Broadband Light Source

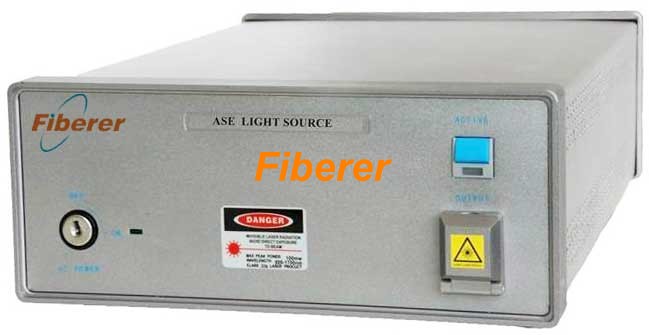

1480-2000nm ASE Broadband Light Source (above)
Description:
1480-2000nm Broadband ASE Light Source, operating wavelength range 1480-2000nm, output power 10-30 dBm, power spectral density ≥1 mW/nm. Other working wavelength ranges are available like 1240-1660nm, 1260-1630nm, 1250-1650nm, 1260-1720nm, 1220-1700nm, etc. OEM model is well available on customer’s special request.

Applications:
White Light Interferometry
Optical Component Test
Fiber and Grating characterization
Optical coherence tomography (OCT)
Biomedical applications
ASE-Alternative

Features:
Continuous Ultra-Broadband Light Source
Spectral Range: 1480-2000 nm
Total Output Power up to 1 Watt
Turn-key Solution
Cost Effective
A Single Fiber Output

Specifications:
Parameters

Operating wavelength (nm)
1480-2000, 1240-1660, 1260-1630, 1250-1650, etc
Output power (dBm)
10~30
Power Spectral density (mW/nm)
≥1
Power spectral density stability (dB)
≤±0.2 (5 min)
Output power short-term stability (dB) 1
≤±0.2 (5 min)
Output power long-term stability (dB) 2
≤±0.4 (8 hour)
Pigtail fiber
SMF-28
Connector type
FC/PC, FC/UPC or FC/APC, etc
Operating temperature (℃)
10 ~ +30
Storage temperature (℃)
5 ~ +45
Relative humidity (%)
20~80
Power Supply
110/220V AC, +5V DC; >500 mA; △V<1%
Maximal Power Consumption (W)
30
Dimensions (L×W×H, mm)
320×220×90(Desk-top)
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
               1. Test condition: fixed temperature, CW.
               2. Test condition: temperature variation ±2℃, CW.

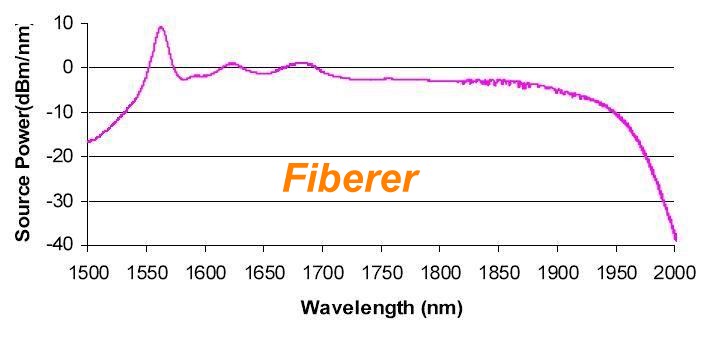

Typical Spectrum

Typical Spectrum

Ordering Information
ASE-EB
Package Type
Operating Wavelength
Power Spectral Density
Connector

D=Desk-top
etc
1=1480-2000nm
2=1240-1660nm
3=1260-1630nm
4=1250-1650nm
etc
30=-30dBm/nm
25=-25dBm/nm
20=-20dBm/nm
etc
FC/UPC
FC/APC
etc





Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
