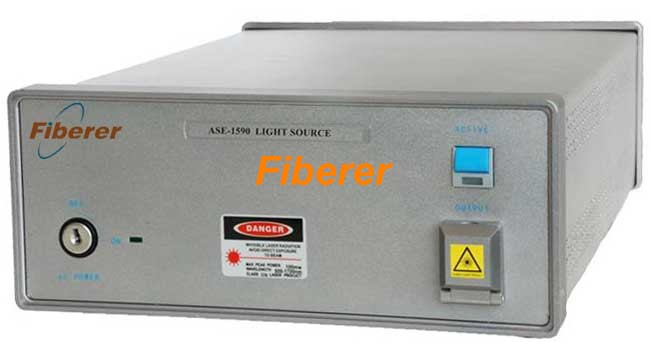

1600nm/1590nm ASE Broadband Light Source (above)
Description:
1600nm/1590nm ASE Broadband Light Source, based on Amplified Spontaneous Emission (ASE) laser diode (LD). Center wavelength 1590nm or 1600nm, operating wavelength range 1530 to 1660 nm, 1540-1640nm, etc. Output power 5-10 mW, etc. Spectral density -20~-10 dBm/nm, Degree of Polarization (DOP) ≤5%. OEM model is well available on customer’s special request.
Applications:
Optical fiber sensing
PLC, CWDM, DWDM, Film testing
Optical fiber grating testing
Optical fiber measurement equipments
Fiber Optic Gyroscope (FOG)
Optical coherence tomography (OCT)
Features:
High output power
High spectral stability
Broadband spectrum output
Low noise
Low polarization and low coherent
Specifications:
|
Parameters |
ASE-1600 |
|
Operating wavelength (nm) |
1540~1640, etc |
|
-3dB spectrum width (nm) |
≥50, etc |
|
Output power (mw) |
5 ~10 |
|
Spectral density (dBm/nm) |
-20 ~ -10 |
|
Spectral stability (dB) |
≤±0.05(5 min) |
|
Output power short-term stability (dB) |
≤±0.01 (5 min) |
|
Output power long-term stability (dB) |
≤±0.03 (8 hour) |
|
Degree of Polarization (DOP) |
≤5% |
|
Pigtail fiber |
SMF-28 |
|
Connector type |
FC/PC, FC/UPC or FC/APC, etc |
|
Operating temperature (℃) |
0 ~ +65 (-20 ~ +65 available) |
|
Storage temperature (℃) |
-20 ~ +70 |
|
Relative humidity (%) |
20~80 |
|
Power Supply |
110/220V AC, +5V or +3.3V DC; >500mA; △V＜1% |
|
Maximal Power Consumption |
10 W |
|
Dimension (L×W×H, mm) |
90×70×19(Module), or 320×220×90(Desk-top) |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature, CW.
2. Test condition: temperature variation ±2℃, CW.

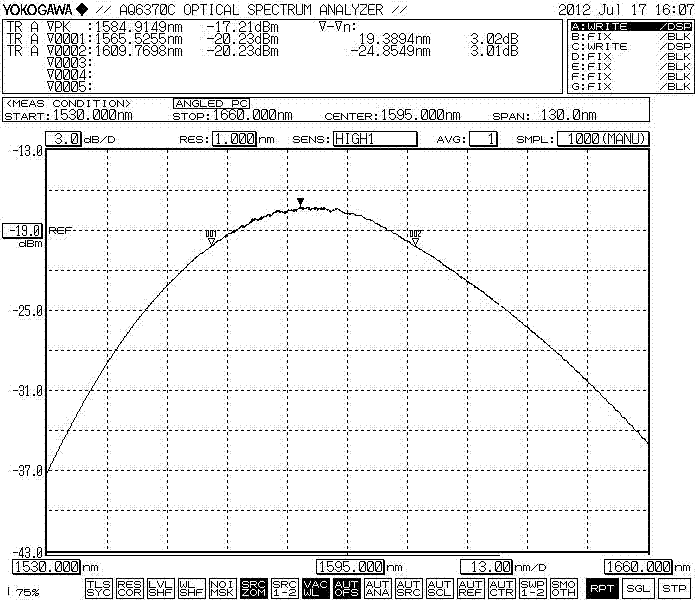

Typical Spectrum
Ordering Information
|
ASE-1600 |
Package Type |
Output Power |
Connector |
|
|
M=Module
D=Desk-top |
10=10mW
20=20mW
etc |
FC/UPC
FC/APC
etc |
