 Product >> DFB Light Source >> 18 Channels CWDM Light Source
18 Channels CWDM Light Source
Name:

18 Channels CWDM Light Source

Class:
DFB Light Source
Type:

18 Channels CWDM Light Source Specification


Fiberer Rohs

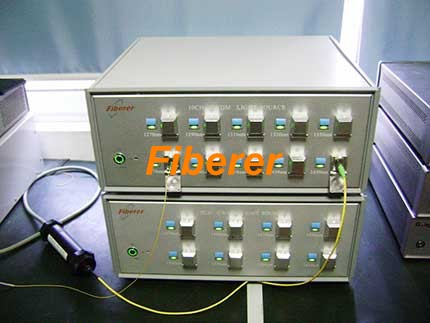

10 and 8 Channels CWDM Light Source
10 and 8 Channels CWDM Light Source (above)

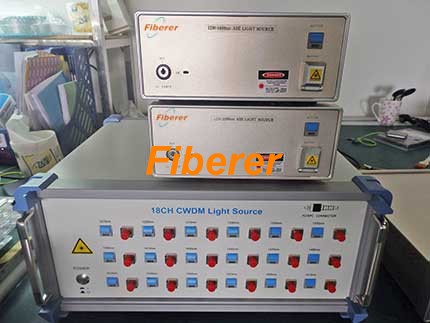

Low DOP 1250-1650nm ASE and 18 Channels CWDM Light Source
Low DOP 1250-1650nm ASE and 18 Channels CWDM Light Source (above)

Description:
18 Channels CWDM Light Source in one Desk-top unit to save space and cost, select max 18 wavelengths from 1270-1610 nm or 1271-1611 nm range, with channel spacing 20 nm, output power 1-10 mW/channel, -3dB spectrum width ≤10 MHz. OEM model is well available on customer’s special request.

Applications:
Optical fiber component manufacture & test
Optical communication system test
CWDM, PLC Splitter, Film testing

Features:
High stability output power
Narrow spectrum, single longitudinal mode output

Specifications:
Parameters
DFB
Central wavelength (nm)
1271, 1291, 1311, 1331, 1351, 1371, 1391, 1411, 1431, 1451, 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 (or 1270, 1290,,,,, 1590, 1610)
-3dB spectrum width (Hz)
10M
Output power (mW)/each channel
1~10
Output power short-term stability (dB)
≤±0.01/5 min
Output power long-term stability (dB)
≤±0.02/8 hour
Operating mode
CW
Fiber pigtail
SM-28 Fiber
Output connector
FC/PC, FC/UPC or FC/APC, etc
Operating temperature (℃)
0 ~ 40
Storage temperature (℃)
-20 ~ 70
Power supply
AC 110/220V±10%, 50Hz, 20W
Dimensions (L×W×H, mm)
400×400×180(Desk-top)

Typical Spectrum

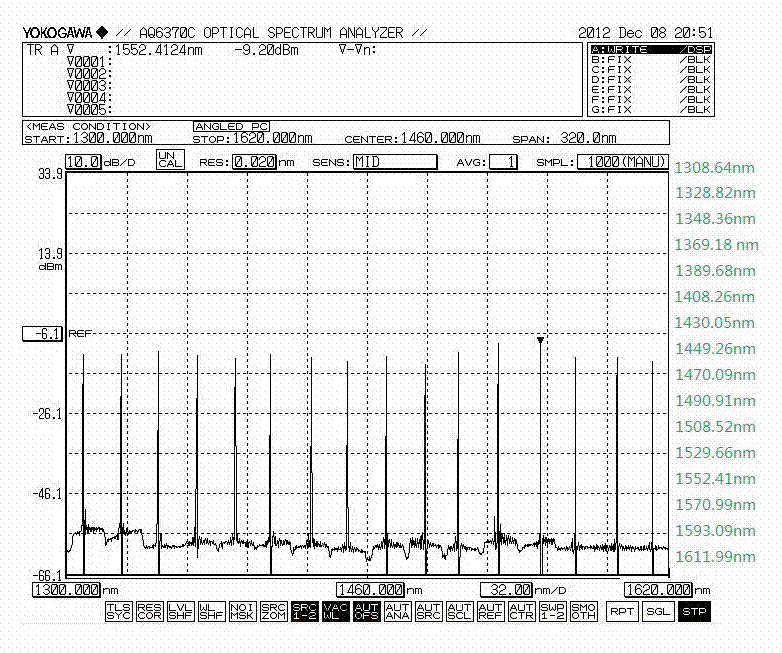

16 Channels CWDM Light Source Spectrum(one power output port)

16 Channels CWDM Light Source Spectrum(one power output port, above)

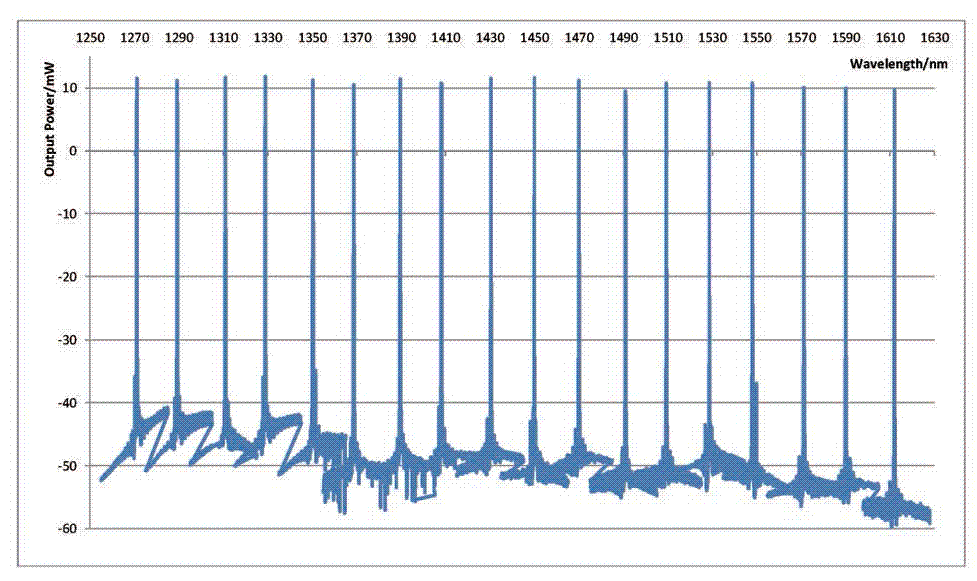

18 Channels CWDM Light Source Spectrum
18 Channels CWDM Light Source Spectrum (above)


Ordering Information:
OS-D
Package Type
Operating Wavelength
Output Power(each channel)
LCD Display
Power Adjustable
Fiber Type
Connector

M=Module
D=Desk-top
1U=1U Rack
2U=2U Rack
etc
1310=1310nm 1550=1550nm 1310/1550=1310 & 1550nm
 etc
1=1mW    10=10mW      50=50mW
     etc
0=Without
1=With
0=Without
1=With
S=SM Fiber
P=PM Fiber
M=MM Fiber
FC/UPC     FC/APC
etc




Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
