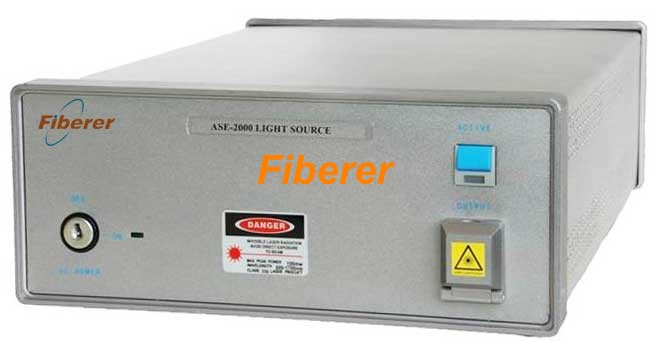

1960/2000nm ASE Broadband Light Source Specification
(above)
Description:
2000nm ASE Broadband Light Source, based on Amplified Spontaneous Emission (ASE) laser diode (LD), center wavelength 1960+/-10 nm, output power ≥30 (with isolator), or ≥50 (without isolator), bandwidth (FWHM) ≥ 60 nm, output power stability ±5% dB (30 min warm up). OEM model is well available on customer’s special request.
Applications:
Passive optical component testing
Gas spectral sensing and imaging
Biomedical applications
Scientific measurement
Features:
Broad bandwidth
Near IR wavelength range
Customized center wavelength
High output power
Specifications:
Parameters
ASE-2000
Center wavelength (nm)
1960+/-10
Output power (mW)
≥30 (with isolator), or ≥50 (without isolator)
Bandwidth (FWHM, nm)
≥ 60
Output power stability (dB)
±5% (30 min warm up)
Output Fiber
SMF-28
Operating temperature (℃)
5~+35
Storage temperature (℃)
-10 ~+65
Relative humidity (%)
20~80
Power Supply
+5V DC; >2A; △V＜1%(Module); AC 110/220V±10%, 50Hz, 20W(Desk-top)
Dimensions (L×W×H, mm)
90×70×19(Module); 320×220×90(Desk-top)

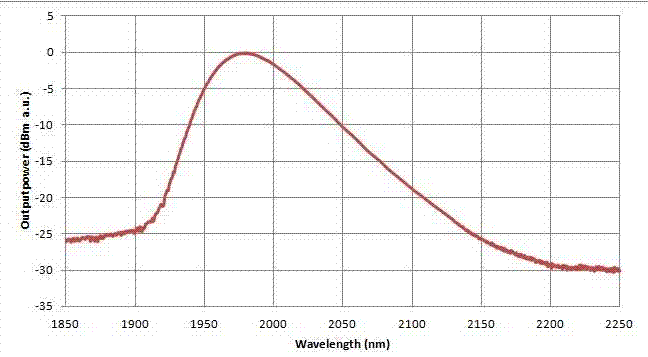

Typical Spectrum
Ordering Information
ASE-2000
Package Type
Output Power
Connector
M=Module D=Desk-top
30=30mW
50=50mW
etc
FC/UPC FC/APC
etc
Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.
Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.
Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.
Quality Assurance:
assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and
invoice,match the safety of international business
