Product Show

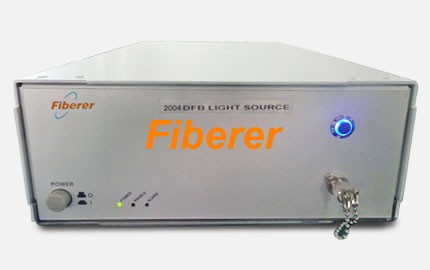

2004nm DFB Light Source
Name:

2004nm DFB Light Source

Class:
DFB Light Source
Type:

2004nm DFB Light Source Specification


Fiberer Rohs
2004nm DFB Light Source
Description:
2004nm DFB Light Source, Central wavelength 2004nm, -3dB spectrum width <10MHZ, Output power ≤ 2mW. OEM model is well available on customer’s special request.
Applications:
CO2 sensing
Oxygen spectroscopy

Features:
High stability
Narrow linewidth
TEC cooling
High SMSR

Specifications:
Parameters
DFB
Central wavelength (nm)
2004, etc
-3dB spectrum width (HZ)
10M
Output power (mW)
≤2
Short term stability 1 (dB)
<±0.005dB/5 min
Long term stability 2 (dB)
<±0.01dB/8 hour
Operating mode
CW, Internal modulate, external modulate
Fiber pigtail
SM-28 Fiber or PM fiber
Output connector
FC/PC, FC/UPC or FC/APC
Operating temperature(℃)
0 ~ 40
Storage temperature(℃)
-20 ~ 70
Power supply
AC 110/220V±10%, 50Hz, 20W
Dimensions (L×W×H, mm)
90×70×20(Module), or 320×220×90(Desk-top)

Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
               1. Test condition: fixed temperature, CW.
               2. Test condition: temperature variation ±2℃, CW.

Typical Spectrum

Ordering Information:
OS-D
Package Type
Operating Wavelength
Output Power
LCD Display
Power Adjustable
Fiber Type
Connector

M=Module
D=Desk-top
2004=2004nm
760=760nm 1877=1877nm 2740=2740nm
 etc
1=1mW   2=2mW
etc
0=Without
1=With
0=Without
1=With
S=SM Fiber
P=PM Fiber
M=MM Fiber
FC/UPC     FC/APC
etc
Note: LCD display is to display the light source’s working wavelength and output power.




Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
