Product Show

 Product >> Wavelength Tunable Light Source >> 2nm Wavelength Tunable Range Light Source
2nm Wavelength Tunable Range Light Source
Name:

2nm Wavelength Tunable Range Light Source

Class:
Wavelength Tunable Light Source
Type:

2nm Wavelength Tunable Range Light Source Specification


Fiberer Rohs
Wavelength Tunable Range Light Source

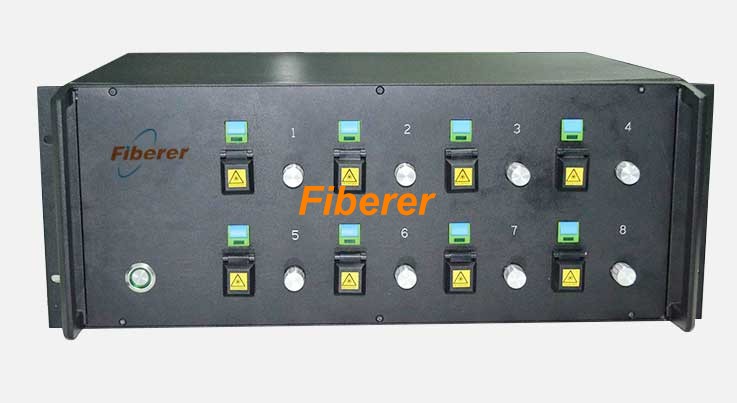

8 Channels Wavelength Tunable DFB Light Source (above)
Description:
2nm Wavelength Tunable Range DFB Light Source, Central wavelength 1310nm, 1550nm, etc, Output power ≤ 20 mW, Tunable wavelength range ≤ 2nm. OEM model is well available on customer’s special request.

Applications:
Optical fiber component manufacture & test
Optical communication system test

Features:
High output power stability
High wavelength stability
Internal modulate, and external modulate
2 nm tunable range

Specifications:
Parameters
DFB Tunable
Central wavelength (nm)
1310
1550
Output power (mW)
≤ 20
Tunable wavelength range (nm)
≤ 2
Wavelength stability (pm)
±50
±1
Short term stability 1 (dB)
≤±0.005dB/8 min
Long term stability 2 (dB)
≤±0.02dB/8 hour
Fiber pigtail
SM-28 fiber or PM fiber
Output connector
FC/PC, FC/UPC or FC/APC, etc
Operating termperature (℃)
0 ~ 40
Storage temperature (℃)
-20 ~ 71
Power supply
AC 110/220V±10%, 50Hz, 20W
RS-232 connector
Available for external modulate
Dimensions (L×W×H, mm)
90×70×19(Module), or 320×220×90(Desk-top)
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
               1. Test condition: fixed temperature, CW.
               2. Test condition: temperature variation ±2℃, CW.

Ordering Information
OS-T
Package Type
Operating Wavelength
Output Power
LCD Display
Power Adjustable
Fiber Type
Connector

M=Module
D=Desk-top
1U=1U Rack
2U=2U Rack
etc
1310=1310nm
1550=1550nm 1310/1550=1310 & 1550nm
 etc
1=1mW    10=10mW     20=20mW
etc
0=Without
1=With
0=Without
1=With
S=SM Fiber
P=PM Fiber
M=MM Fiber
FC/UPC
 FC/APC
etc




Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
