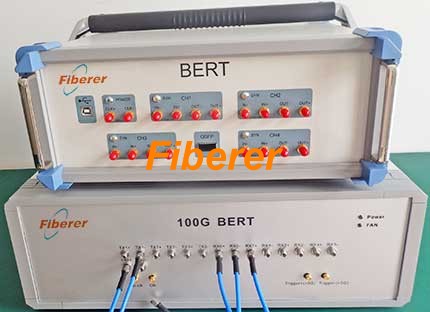

4 X 10G and 100G BERT (above)
Description:
4 X 10Gbps (40G) BERT (Bit Error Rate Tester) is designed to test cables and diagnose signal problems in the communication field. 4-channel Standard Multi-rate between 9.95 Gb/S and 11.3 Gb/S are provided for signal conditioning and BER analysis.
Applications:
Communications IC test
PON Systems
Telecommunication systems
Data communication systems
Features:
4-channel standard multi-rate BERT between 9.95 Gb/s and 11.3 Gb/s
PRBS7/23/31 pattern or clock generation and error detection with integrated clock data recovery
Two accurate and stable internal clocks built-in, with stability better than 1.5ppm and 20ppm respectively
4 channel 10G PPG from electrical SMA
Connector or QSFP module
USB2.0 interface and remote control with PC software
Fully programmed
Easy-to-use and cost-effective
Specifications:
|
Parameters |
Unit |
Description |
Notes |
|
Data Rate |
bps |
9.953G(SONET/SDH)
10.312G(10 GbE)
10.7G(10 GbE/10 GbE+FEC)
11.1G(10 GFC/10GFC+FEC) |
|
|
Electrical Pattern Generator |
|
Differential and AC-coupled
500~800 mVpp |
SMA or QSFP connector in front panel |
|
Optical Pattern Generator |
|
Standard QSFP connector |
|
|
Trigger output |
|
Differential and AC-coupled
600mV typically |
SMA connector in front panel |
|
Input signal type |
|
Differential, AC-coupled |
|
|
Input signal amplitude |
mVpp |
≤500 (single-ended)
≤1000 (differential) |
|
|
Input Impedance |
Ω |
100 |
|
|
Sensitivity |
mV |
＜10 |
|
|
Operating temperature |
℃ |
-5~60 |
|
|
Storage temperature |
℃ |
-30~70 |
|
|
Power supply |
|
220V AC, 250W max. |
|
|
Dimensions |
mm |
280x380x150 |
|
Operating System

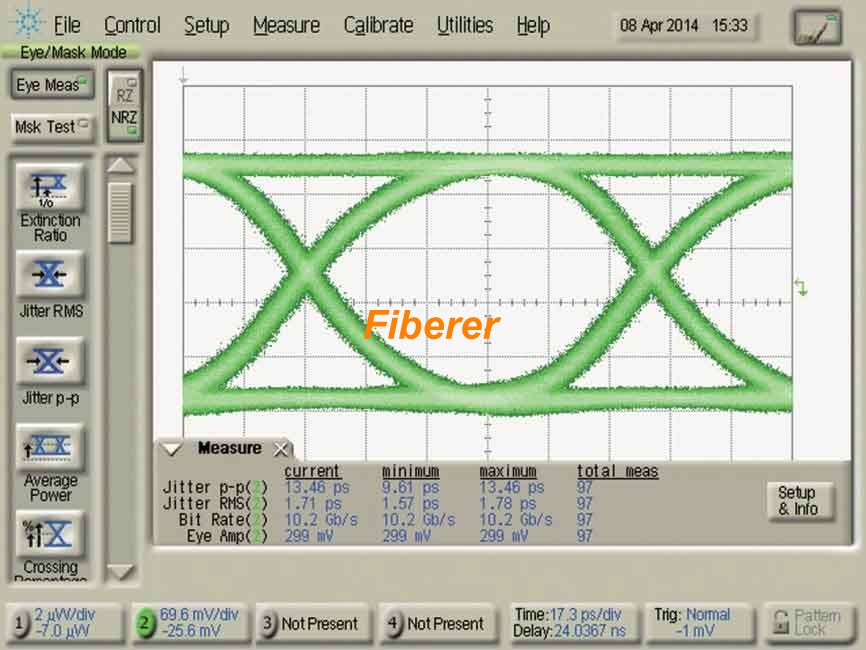

Figure 1. Typical eye diagram of pattern generator electrical output (above)
Ordering Information
|
Part Number |
Description |
|
BERT40 |
4 X 10Gbps BERT with 4 channel electrical output and 4 channel optical output |
