4 X 25Gbps (100G) BERT (Bit Error Rate Tester)

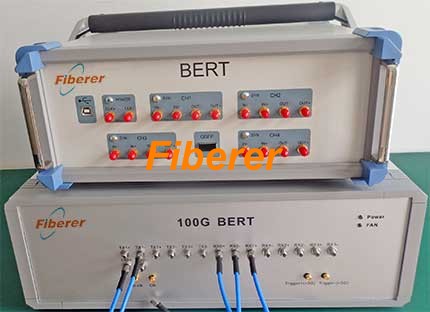

4 X 10G and 100G BERT (above)

Description:

4 X 25Gbps (100G) BERT (Bit Error Rate Tester) is designed to test cables and diagnose signal problems in the communication field. 4-channel Standard Multi-rate between 25.78Gbps and 27.95Gbps are provided for signal conditioning and BER analysis. OEM model is well available on customer’s special request.

Applications:

Communications IC test

PON Systems

Telecommunication systems

Data communication systems

CFP2/CFP4/QSFP28/SFP28

Features:

4-channel standard multi-rate BERT between 25.78Gbps and 27.95Gbps

PRBS7/9/15/23/31 pattern or clock generation and error detection with integrated clock data recovery

High speed trigger output

Automatically synchronized alignment

Output connector can be compatible with PRC-3.5 and SMA

Easy-to-use and cost-effective

Specifications:

Parameters	Symbol	MIN	TYP	Max	UNIT	NOTE
Data Rate	DR	25.78		27.9	Gbps
No. of channels			4
PRBS Pattern 2N-1	N	7/9/15/23/31
Data input Termination	AC-Coupled
Data Output Amplitude	T_Vdiff	600			mV
Data Output Termination	AC-Coupled
Data Output Resistance	T_Rd	85	100	115	ohm	Differential
Data input Resistance	R_Rdin	85	100	115	ohm
Data input Termination	AC-Coupled
Trigger output Frequency	ftriout	3.2225		3.4875	Gbps	Data rate/8
Trigger output Termination	AC-Coupled
clk output Frequency	fclkout	644.5312		698.8123	Mbps	Data rate/40
clk output Termination	AC-Coupled
ext clk Input Duty Cycle	CK_DCD	40		60	%
ext clk Input Amplitude	CK_Vin	600		1600	mVdpp
Warm Up Time	Twu	10			S
Operating Temperature	Top	10		40	oC	Ambient Temp
Power Consumption	APwr			5	W	25 ℃ ambient temp

Operating System

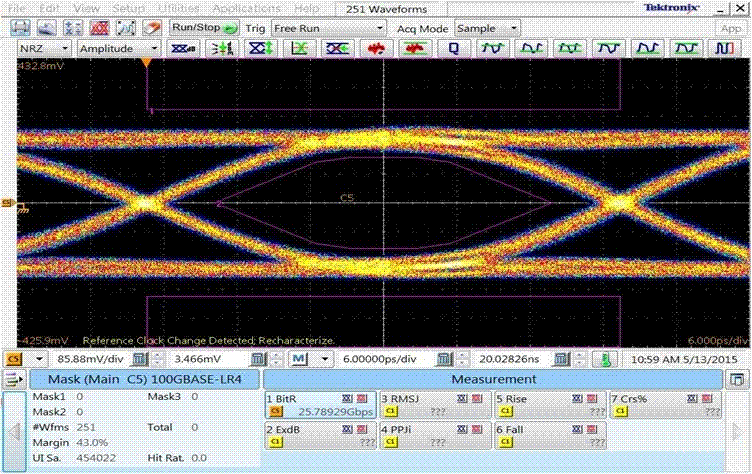

Figure 1. Typical eye diagram of pattern generator electrical output (above)

Ordering Information

Part Number

Description

BERT100

4 X 25Gbps BERT
