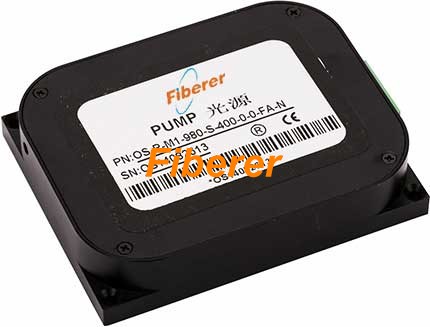

980nm Pump Light Source Module (above)

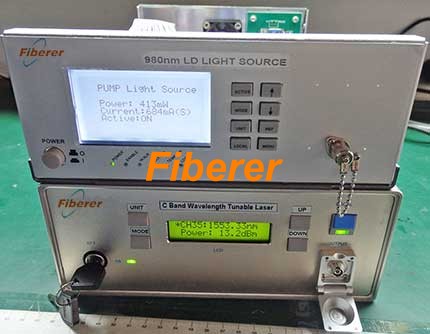

980nm Pump and C Band Wavelength Tunable Light Source (above)

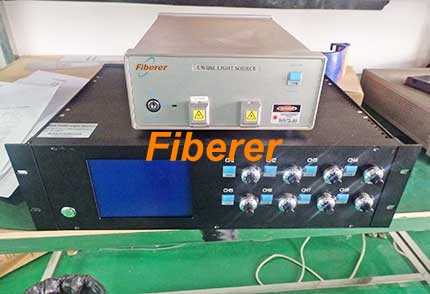

2 Channels CWDM and 8 Channels 980nm Pump Light Source (above)
Description:
980nm Pump Light Source, central wavelength 974/976nm, output power 120-900 mW. Other central wavelengths are available like 940 nm, 960nm, etc. OEM model is well available on customer’s special request.
Applications:
Optical fiber sensing
Optical fiber component manufacture & test
Optical communication system test
Features:
High stable output power
Narrow spectrum, single longitudinal mode output
Specifications:
|
Parameters |
Pump Laser |
|
Central wavelength (nm) |
974, 976, etc |
|
Output power (mW) |
120~900 |
|
Output power short-term stability (dB) 1 |
≤±0.005 (15 min) |
|
Output power long-term stability (dB) 2 |
≤±0.01 (8 hour) |
|
Pigtail fiber |
HI1060 or PM Fiber |
|
Connector type |
FC/PC, FC/UPC or FC/APC, etc |
|
Operating temperature (℃) |
0 ~40 |
|
Storage temperature (℃) |
-20~71 |
|
Power Supply |
AC 110/220V±10%, 50Hz, 20W |
|
Dimensions (L×W×H, mm) |
90×70×19, or 100×80×30(Module); 320×220×90(Desk-top) |

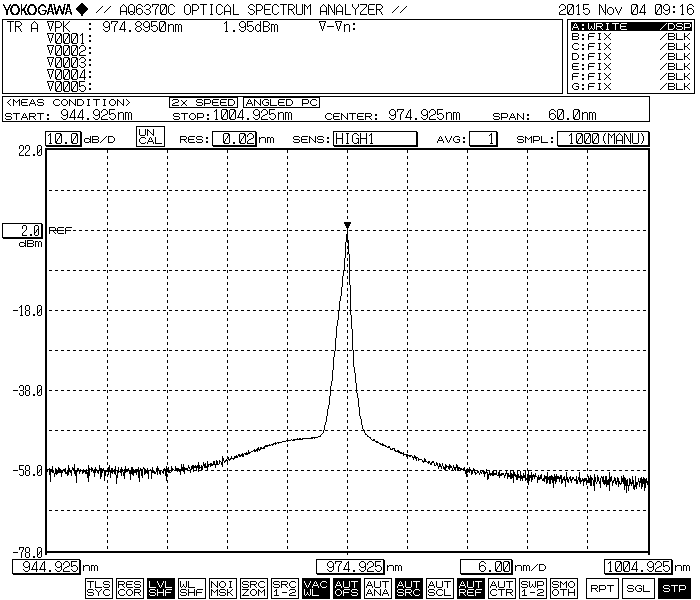

Typical Spectrum
Ordering Information
|
OS-P |
Package Type |
Operating Wavelength |
Output Power |
LCD Display |
Power Adjustable |
Fiber Type |
Connector |
|
|
M=Module
D=Desk-top
1U=1U Rack
2U=2U Rack
etc |
940=940nm
960=960nm 980=980nm
etc |
1=1mW 10=10mW 50=50mW
etc |
0=Without
1=With |
0=Without
1=With |
S=SM Fiber
P=PM Fiber
M=MM Fiber |
FC/UPC FC/APC
etc |
