ASE C Band Broadband Light Source
Name:

ASE C Band Broadband Light Source

Class:
Broadband ASE Light Source
Type:

ASE C Band Broadband Light Source Specification


Fiberer Rohs
ASE C Band Broadband Light Source

ASE C Light Source Module (above)

Band Broadband Light Source

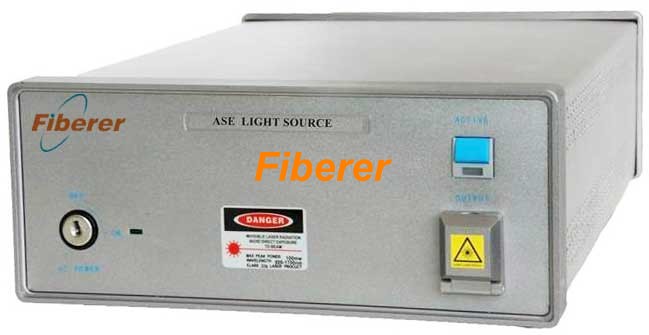

850nm SLED and ASE C Light Source (above)

Description:
ASE C Band Broadband Light Source, Operating wavelength range 1525-1565nm without GFF flatness with Output power 10-25 dBm, and 1527-1565nm with GFF flatness with Output power 7-18 dBm. Spectral density -20 to -2 dBm/nm. Degree of Polarization (DOP) ≤5%. OEM model is well available on customer’s special request.

Applications:
Optical fiber sensing
PLC, CWDM, DWDM, Film testing
Optical fiber grating testing
Optical fiber measurement equipments
Fiber Optic Gyroscope (FOG)
Optical coherence tomography (OCT)

Features:
High output power
High spectral stability
Broadband spectrum output
Low noise
Low polarization and low coherent

Specifications:
Parameters
ASE-C
GFF
No
GFF
Operating wavelength (nm)
1525~1565, or OEM
1527~1565, or OEM
Flatness (dB)
No
<2
Output power (dBm)
10~25
7~18
Spectral density (dBm/nm)
-20 ~ -2
Spectral stability (dBm/nm)
≤±0.05(5 min)
Output power short-term stability (dB) 1
≤±0.01 (5 min)
Output power long-term stability (dB) 2
≤±0.03 (8 hour)
Degree of Polarization (DOP)
≤5%
Pigtail fiber
SMF-28
Connector type
FC/PC, FC/UPC or FC/APC, etc
Operating temperature (℃)
0 ~ +65 (-20 ~ +65 available)
Storage temperature (℃)
-20 ~ +70
Relative humidity (%)
20~80
Power Supply
110/220V AC, +5V or +3.3V DC; >500mA; △V<1%
Maximal Power Consumption
10 W
Dimension (L×W×H, mm)
90×70×19 or 100×80×10(Module), or 320×220×90(Desk-top)






















Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
               1. Test condition: fixed temperature, CW.
               2. Test condition: temperature variation ±2℃, CW.

Typical Spectrum

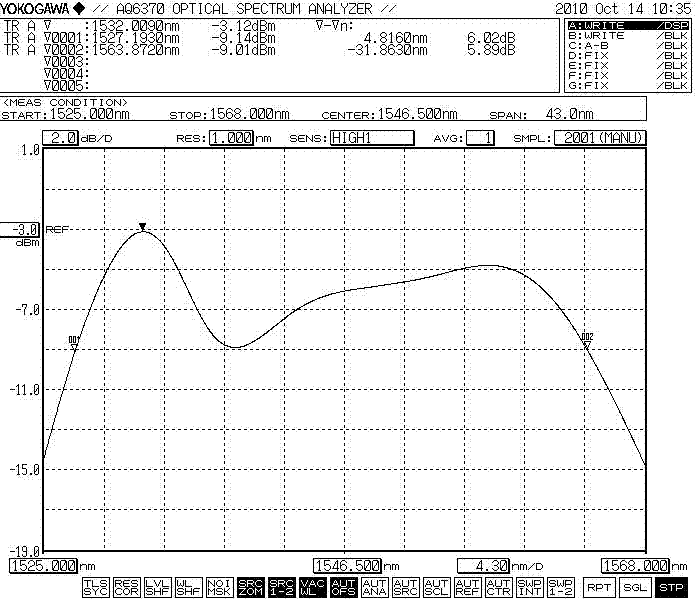

15dBm output spectrum without GFF
15dBm output spectrum without GFF (above)

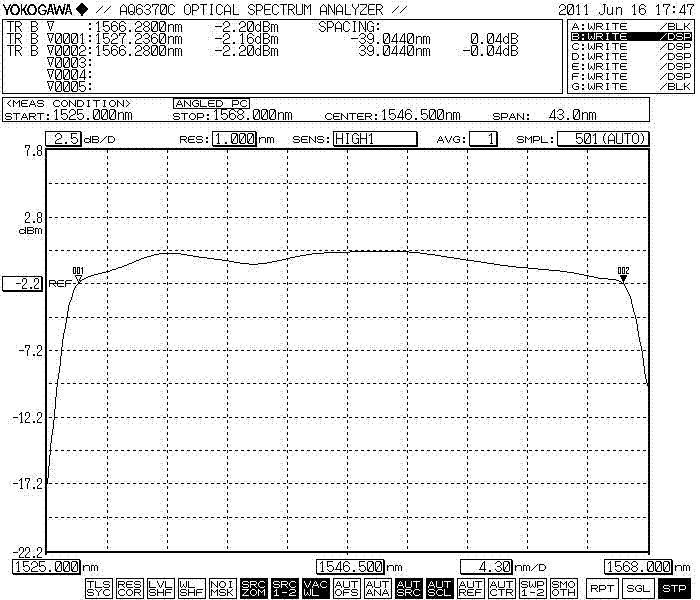

13dBm output spectrum with GFF
13dBm output spectrum with GFF (above)

Ordering Information
 ASE-C
Package Type
GFF
Output Power
Fiber Type
Connector

M=Module
D=Desk-top
G=With GFF
N=Without GFF
10=10mW
20=20mW
etc
S=SM Fiber
P=PM Fiber
FC/UPC
FC/APC
etc











Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.
