 Product >> Optical Amplifier >> C Band EDFA (Erbium doped Fiber Amplifier)
C Band EDFA (Erbium doped Fiber Amplifier)
Name:

C Band EDFA (Erbium doped Fiber Amplifier)
Class:
 Optical Amplifier
Type:

C Band EDFA (Erbium doped Fiber Amplifier) Specification

Fiberer Rohs

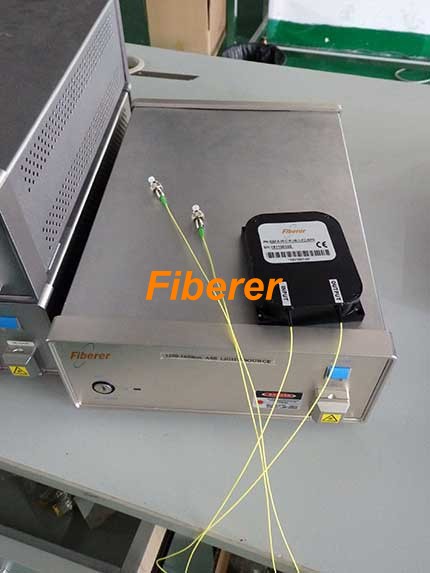

EDFA Module and Low DOP 1250-1650nm ASE Light Source
EDFA Module and Low DOP 1250-1650nm ASE Light Source (above)

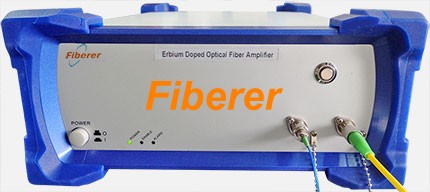

Desk-top EDFA
Desk-top EDFA (above)

Description:
C Band EDFA (Erbium doped Fiber Amplifier), operating wavelength 1530-1565nm, optical input power -3-10dBm, optical output power 13-27dBm. OEM model is well available on customer’s special request.

Applications:
Analog and digital CATV system
Long distance transmission system
Access network
LANs and WANs

Features:
Intelligent MPU monitor
High output and high gain
Low noise figure
User friendly interface RS-485

Specifications:
Parameter
Min
Typ
Max
Unit
Remark
Operating wavelength
1530
1550
1565
nm
　
Optical input power
-3
0
10
dBm
　　
Optical output power
13
　
27
dBm
　　
Noise figure
　
5
　
dB
0 dBm input
PDG
　
　
0.5
dB
　
Pump remnant to output
　
　
-30
dBm
　　
Pump remnant to input
　
　
-30
dBm
　　
Return loss
40
　
　
dB
EDFA off
Power supply
100
220
240
V(AC)
　　
Power consumption
8
16
25
W

Operating temperature
-5
　
55
℃
　
storage temperature
-20
　
70
℃
　
Users interface
LCD shows internal operating parameter, LED shows operation status and alarm
Network interface
RJ-45 or RS-232, or RS-485
Dimension (L×W×H)
90×70×19(Module), 483×385×44(1U 19" rack) or 320×220×90(Desk-top), etc
mm
　　

Ordering Information
EDFA-C
Package
Application
Control mode
Output power
Pigtail fiber
Connector
　
U=1U 19“ rack D=Desk-top        M=Module
etc
B=Power amplifier
L=In-line amplifier
P=Pre-amplifier
ACC=Automatic Current Control
APC=Automatic Power Control
AGC=Automatic Gain Control
10=10dBm                                        13=13dBm           20=20dBm
27=27dBm                 etc
0=250um
1=900um
2=2mm
3=3mm
etc
FC/UPC
FC/APC   SC/APC
etc




Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.

Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
