Product Show

EA-DFB Light Source Module
Name:

EA-DFB Light Source Module

Class:
EADFB Light Source Module
Type:

EA-DFB Light Source Module Specification


Fiberer Rohs

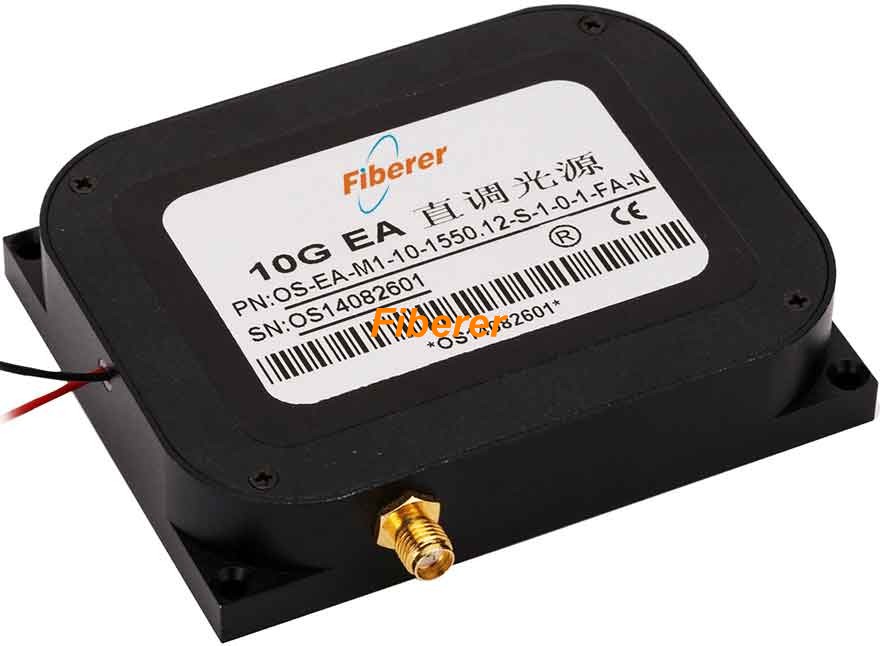

EA-DFB Light Source Module
EA-DFB Light Source Module (above)
Description:
EA-DFB Light Source Module, based on electroabsorption modulators integrated with DFB lasers (EADFB), modulation rate > 10/40Gbps, central wavelength 1528 to 1568 nm, output power 0.5 to 2 mW, Side Mode Suppression Ratio (SMSR) is 35 to 52 dB. OEM model is well available on customer’s special request.

Applications:
10/40Gbps high-speed optical fiber communication system
RF, Microwaves, and Photonics (RMAP) program

Features:
EADFB light source integrates DFB laser and EA modulator
Low driving voltage: < 2.5 V
High bandwidth: > 10 Gb/s, > 40 Gb/s

Specifications:
Parameters
Min
Max
Central wavelength (nm)
1528
1568
Output power (mW)
0.5
2
Modulation Rate (Gbps)
10
40
Side Mode Suppression Ratio (SMSR, dB)
35
52
Modulation voltage, Vp-p (V)
2.0
2.5
Optical power stability (at 25℃, dB)
≤0.02/8 hour
External function
SMA (f) / V(f)
Power supply
5V DC / 3A
Operating temperature (℃)
0 ~ 40
Storage temperature (℃)
-20 ~ 70
Dimensions (L×W×H, mm)
90×70×19(Module), or 320×220×90(Desk-top)

Ordering Information
OS-EA
Package Type
Modulation Rate
Operating Wavelength
Output Power
Fiber Type
Connector

M=Module
D=Desk-top
10=10G
40=40G
C34=1550.12nm
C32=1551.72nm
etc
0.5=0.5mW    1=1mW     2=2mW
etc
S=SM Fiber
P=PM Fiber
M=MM Fiber
FC/UPC     FC/APC
etc






Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
