Low DOP (Degree of Polarization) 800-1100 or 1250-1650nm ASE Broadband Light Source and More
Name:

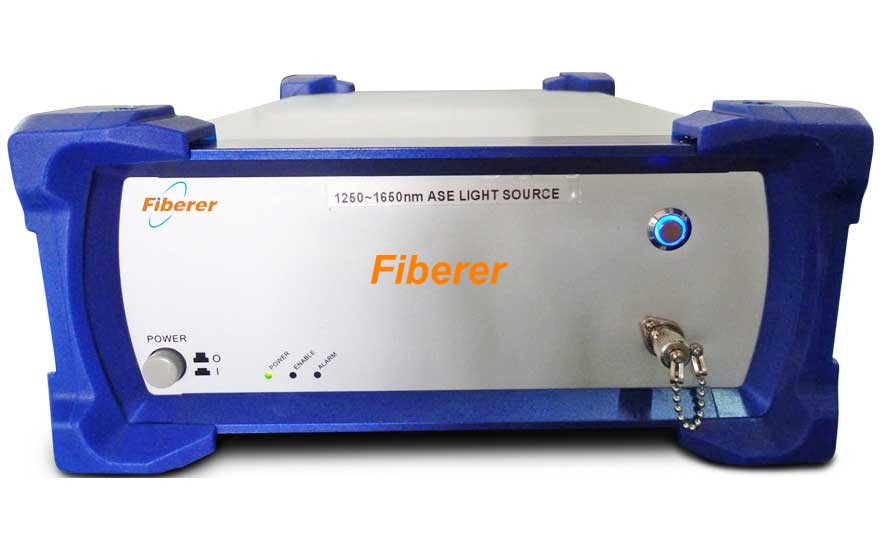

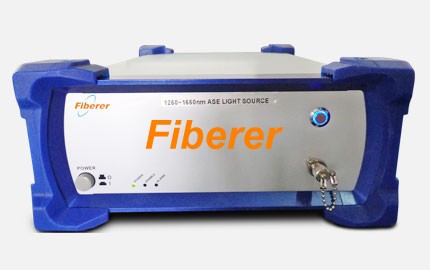

Low DOP (Degree of Polarization) 800-1100 or 1250-1650nm ASE Broadband Light Source and More

Class:
Broadband ASE Light Source
Type:

Low DOP (Degree of Polarization) 800-1100 or 1250-1650nm ASE Broadband Light Source and More Specification


Fiberer Rohs
1250-1650nm ASE Broadband Light Source and More Specification

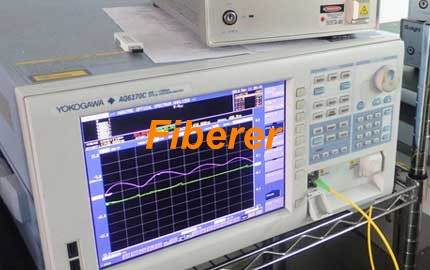

Low DOP 1250-1650nm ASE Broadband Light Source in testing (above)~

testing

Description:
Low DOP (Degree of Polarization) ASE broadband light source is ideal to eliminate the PDL (Polarization Dependent Loss) effect and polarization sensitivity in testing of optical components and instruments. Operating wavelength range 800-1100nm, 760-1120nm, 1250-1650nm,1230-1650nm,1260-1630nm,1240-1660nm, 1220-1700nm, etc. Degree of Polarization (DOP) ≤ 5%, Power Spectral Density (PSD) is -25 dBm/nm (max). OEM model is well available on customer’s special request.

Applications:
Optical fiber sensing
PLC, CWDM, DWDM, Film testing
Optical fiber grating testing
Optical fiber measurement equipments
Fiber Optic Gyroscope (FOG)
Optical coherence tomography (OCT)

Features:
High output power
High spectral stability
400nm broadband spectrum
Low noise
Low polarization
Low coherent

Specifications:
Parameter
ASE
Central wavelength (nm)
800~1100, 760~1120, 1250~1650, 1260~1630, 1240~1660, 1220~1700, etc
Spectrum width (nm)
400, etc
Output power (dBm)
≥7
Power spectral density (dBm/nm)
≥-30 (max to -25)
Ripple (dB)
≤0.2
Output power short term stability (dB)
≤±0.01/15 min
Output power long term stability (dB)
≤±0.03/8 hour
Spectral stability (dB)
≤±0.05(5 min), (≤±0.2 dB for 1350-1420nm as of OH absorption)
Degree of Polarization (DOP)
Typ. ≤10%, Min. ≤5%
Operating mode
CW
Fiber pigtail
Single mode SMF-28
Output connector
FC/PC, FC/UPC or FC/APC
Operating temperature
0℃ ~ 40℃
Storage temperature
-20℃ ~ 70℃
Power supply
110/220V AC±10%, 50Hz, 20W
Dimensions (L×W×H, mm)
320×220×90 (Desk-top)

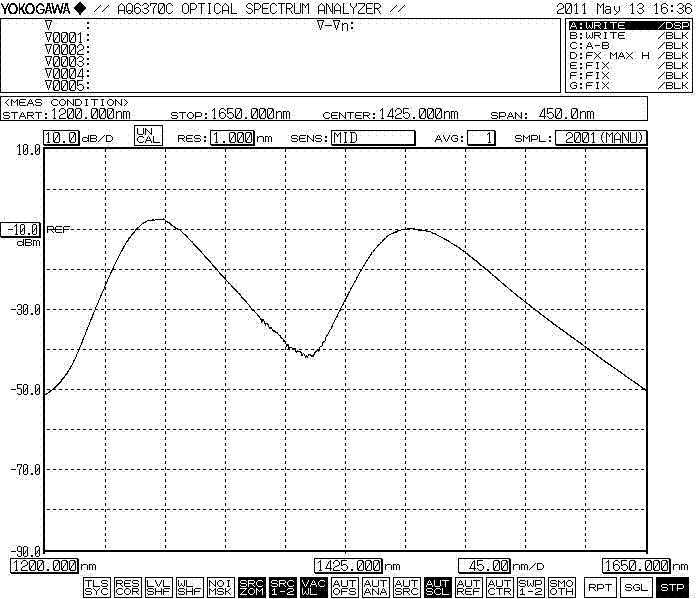

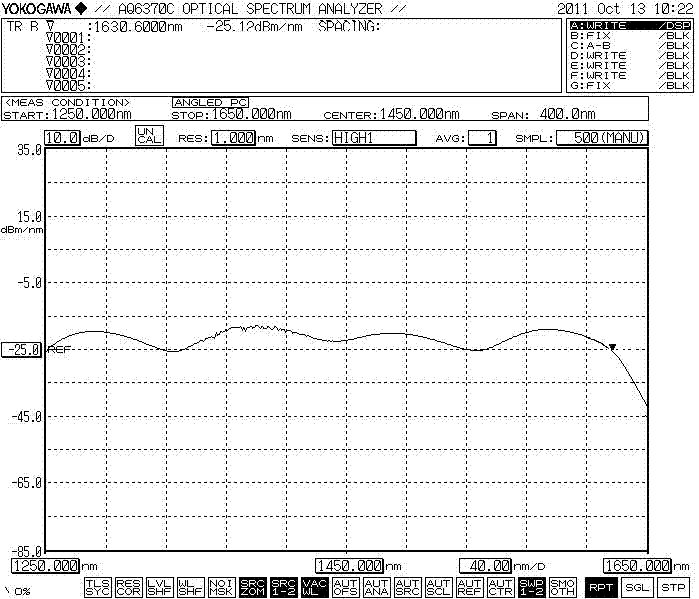

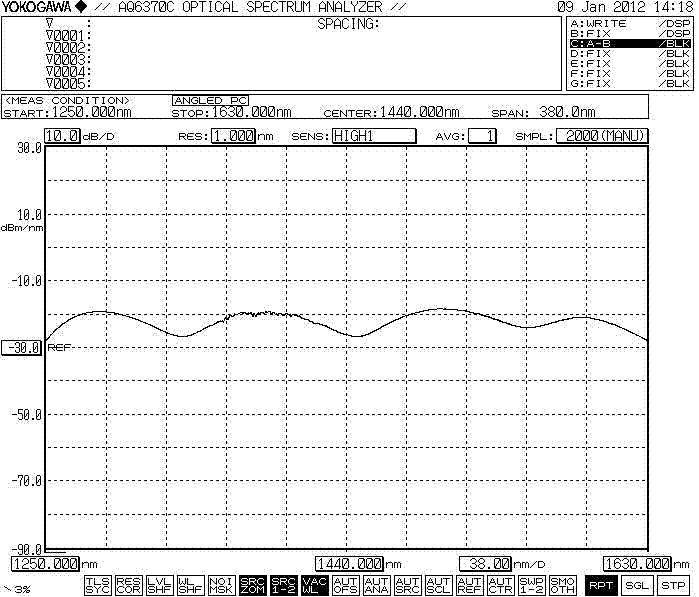

Typical Spectrum

Typical Spectrum


Typical


Spectrum



Ordering Information
ASE-EB
Package Type
Operating Wavelength
Power Spectral Density
Connector

D=Desk-top
OEM
1=1250~1650nm
2=1260~1630nm
3=1240~1660nm
 etc
35=-35dBm/nm
30=-30dBm/nm
25=-25dBm/nm
etc
FC/UPC
FC/APC
etc




Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
