Multimode LED/ELED Light Source
Name:

Multimode LED/ELED Light Source

Class:
Multimode Light Source
Type:

Multimode LED/ELED Light Source Specification


Fiberer Rohs

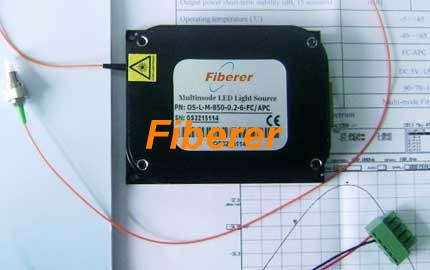

850nm Multimode LED Light Source Module
850nm Multimode LED Light Source Module (above)

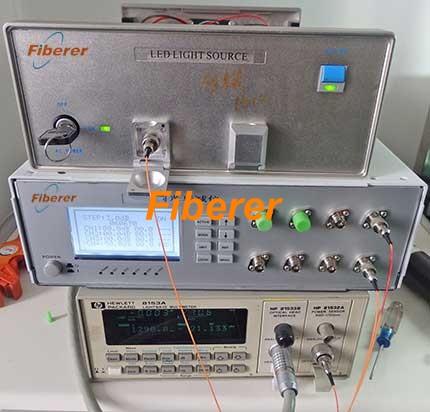

1310nm Multimode LED Light Source and 4 Channels VOA
1310nm Multimode LED Light Source and 4 Channels VOA (above)

Description:
Multimode LED/ELED Light Source, central wavelength 850, 1310, 1550 nm, etc, -3dB spectrum width ≥ 60/140 nm, output power through 62.5/12um multimode fiber ≥20/40/100/150 uW, through 50/12um multimode fiber ≥600 uW. OEM model is well available on customer’s special request.

Applications:
Optical fiber component manufacture & test
Optical communication system test

Features:
High stable output power
High output power
Multimode LED/ELED

Specifications:
Parameters
850 multimode
1310 multimode
1310 multimode
1550 multimode
Radiation source
850nm LED
1310nm LED
1310nm ELED
1550nm ELED
Central wavelength (nm)
850±10
1310±20
1550±20
1550±20
-3dB spectrum width (nm)
≥60
≥140
≥ 30
≥ 30
Output power (uW) (62.5/12um)
≥20/40/100/150
≥20/30/44
≥600
≥300
Output power (uW) (50/12um)
10/20/50/75
≥10/15/22
≥600
≥300
Output power short-term stability (dB)
≤±0.01dB/15 min
Output power long-term stability (dB)
≤±0.02dB/8 hour
Fiber pigtail
       50/125um or 62.5/125um multimode fiber, etc
Output connector
FC/PC, FC/UPC or FC/APC, etc
Operating temperature(℃)
0 ~ 40
Storage temperature(℃)
-20 ~ 70
Power supply
AC 110/220V±10%, 50Hz, 20W
Dimensions (L×W×H, mm)
90×70×19(Module), or 320×220×90(Desk-top)


Typical Spectrum

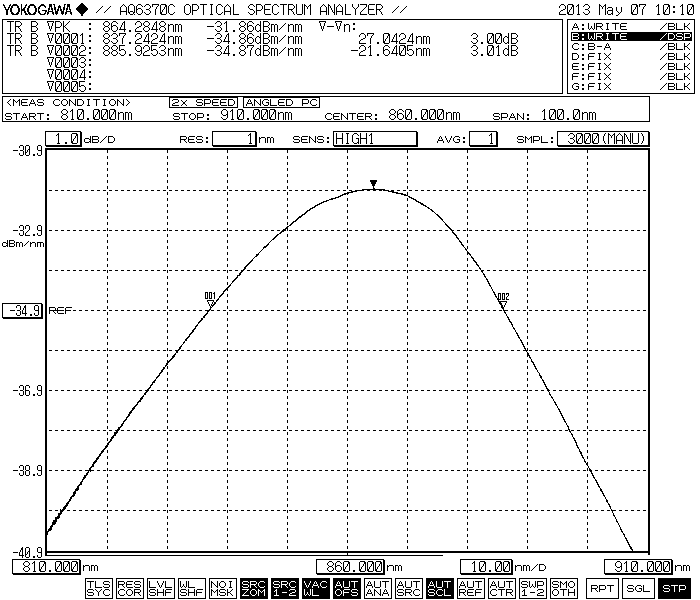

850nm Multimode LED Light Source Spectrum

850nm Multimode LED Light Source Spectrum (above)


Ordering Information
OS-L
Package Type
Operating Wavelength
Output Power
Fiber Type
Connector

M=Module
D=Desk-top
850=850nm
1310=1310nm
1550=1550nm
1315=1310 & 1550nm
 etc
0.02=0.02mW
0.1=0.1mW 0.6=0.6mW
   etc
5=50/125um
6=62.5/125um
10=105/125um
etc
FC/UPC     FC/APC




Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
