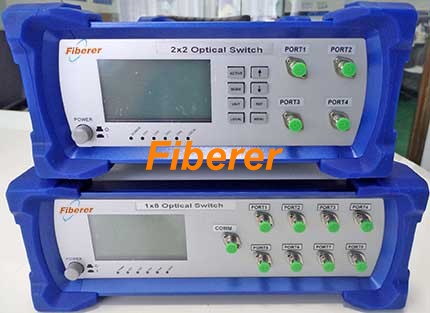

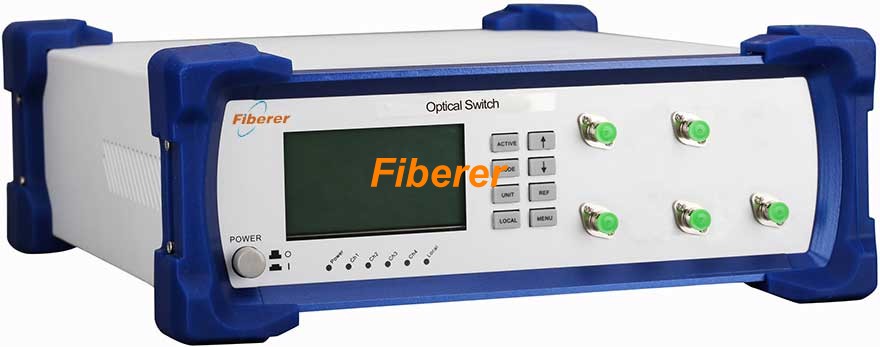

2x2 and 1x8 Optical Switch (above)
Description:
Desk-top Optical Switch, operating mode in Multimode or Single mode, Operating wavelength 850 or 1310 ±40nm or 1250~1650nm, Insertion loss (IL) ≤1.5dB, Polarization Dependent Loss (PDL) ≤0.2dB, Crosstalk ≥35dB, Return loss (RL) ≥30dB, Switching time ≤10ms, Durability 107 Cycles. OEM model is well available on customer’s special request.
Applications:
Channel expansion of light source and test instruments
Optical fiber component manufacture & test
R & D and lab application
Features:
2~16 channels available
Local keyboard control and LCD display
LAN/USB/RS232 remote control interface
Specifications:
|
Parameters |
|
|
|
Operating mode |
Multimode |
Single mode |
|
Operating wavelength (nm) |
850 or 1310 ±40 |
1250~1650 |
|
Insertion loss (IL, dB) |
≤1.5 |
≤1.3 |
|
Polarization Dependent Loss (PDL, dB) |
≤0.2 |
|
Crosstalk (dB) |
≥35 |
≥50 |
|
Return loss (RL, dB) |
≥30 |
≥45 |
|
Fiber type |
50/125um or 62.5/125um MMF |
Corning SMF-28e |
|
Switching time (ms) |
≤10 |
|
Power handling (mW) |
500 |
|
Durability (Cycles) |
107 |
|
Operating temperature (℃) |
-5~+45 |
|
Storage temperature (℃) |
-20~+60 |
|
Relative humidity (%) |
20~90(Non-condensation) |
|
Power supply |
DC 5V, 2A (Module); AC 90~250V, 50~60Hz, 20W (Desk-top) |
|
Communication interface |
RS232/USB/LAN |
|
Dimensions (L×W×H, mm) |
150×145×68 (Module); 360×250×110/360×300×110 (Desk-top) |
Ordering Information
|
SW |
Package Type |
Input Channel Number |
Output Channel Number |
Working
Wavelength |
Fiber Type |
Input/Output
Connector |
|
|
M=Module
D=Desk-top |
1=1 Channel
2=2 Channels
etc |
1=1 Channel
2=2 Channels
8=8 Channels
etc |
850=850nm
1310=1310nm
1550=1550nm
etc |
S=SM Fiber
P=PM Fiber
M=MM Fiber |
FC/UPC
FC/APC
etc |
