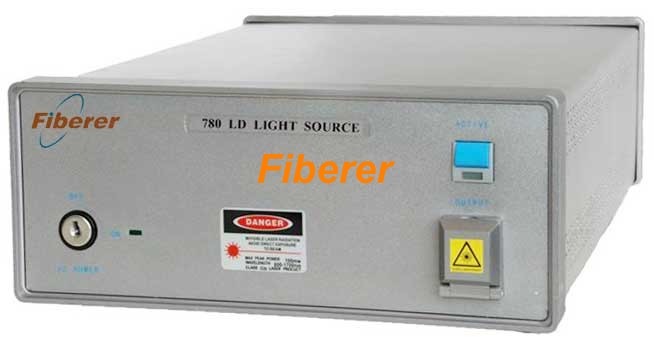

Special Wavelength Light Source, Laser Diode (LD) Type includes DFB, VCSEL, FP, Pump, LED, SLED, etc, central wavelength 650, 750, 980, 1053, 1060 nm, 405nm, 445nm, 593nm, 635nm, 660nm, 685nm, 760nm, 780nm, 795nm, 808nm, 810nm, 830nm, 905nm, 915nm, 940nm, 950nm, 1030nm, 1080nm, etc, output power 0~27 dBm, etc. OEM model is well available on customer’s special request.
Applications:
Optical fiber component manufacture & test
Optical communication system test
Features:
High stable output power
Narrow spectrum, single longitudinal mode output
Specifications:
Parameters
DFB or VCSEL, etc
Central wavelength (nm)
650
750
980
1053
1060
Output power (dBm)
0~27
Output power short-term stability (dB)
≤±0.01dB/5 min
Output power long-term stability (dB)
≤±0.02dB/8 hour
Fiber pigtail
Single Mode Fiber or Multi-Mode Fiber, etc
Output connector
FC/PC, FC/UPC or FC/APC, etc
Operating temperature(℃)
0 ~ 40
Storage temperature(℃)
-20 ~ 70
Power supply
AC110/220V±10%, 50Hz, 20W
Dimensions (L×W×H, mm)
90×70×19(Module), or 320×220×90(Desk-top)
Other wavelengths are available: 405nm, 445nm, 593nm, 635nm, 660nm, 685nm, 760nm, 780nm, 795nm, 808nm, 810nm, 830nm, 905nm, 915nm, 940nm, 950nm, 1030nm, 1080nm, etc.
Ordering Information
OS
Laser Diode Type
Package Type
Operating Wavelength
Output Power
LCD Display
Power Adjustable
Fiber Type
Connector
D=DFB L=LED
F=FP P=Pump S=SLED
M=Module D=Desk-top
650=650nm 750=750nm 1053=1053nm etc
1=1mW 10=10mW 50=50mW
etc
0=Without
1=With
0=Without
1=With
S=SM Fiber
P=PM Fiber
M=MM Fiber
FC/UPC FC/APC
etc
