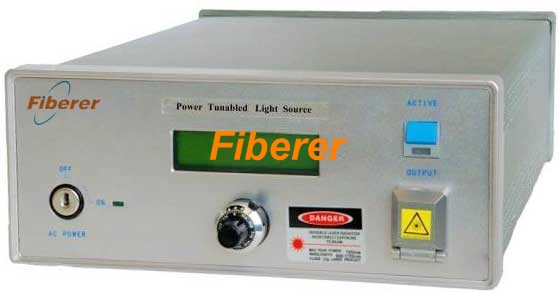

Description:
Optical Output Power Tunable Light Source, central wavelength ITU 1310nm, 1550nm, 1590nm, etc, output power 1 to 100 mW. OEM model is well available on customer’s special request.
Applications:
Optical fiber component manufacture & test
Optical communication system test
Features:
High stability output power
Narrow spectrum, single longitudinal mode output
Specifications:
|
Parameters |
|
|
Central wavelength (nm) |
ITU Wavelength or Customize |
|
Output power (mW) |
1~100, etc |
|
Short term stability 1 (dB) |
≤±0.005/15 min |
|
Long term stability 2 (dB) |
≤±0.01/8 hour |
|
Fiber pigtail |
SM-28 fiber or PM fiber |
|
Output connector |
FC/PC, FC/UPC or FC/APC, etc |
|
Operating termperature (℃) |
0 ~ 40 |
|
Storage temperature (℃) |
-20 ~ 70 |
|
Power supply |
AC 110/220V±10%, 50Hz, 20W or DC +5V |
|
Dimensions (L×W×H, mm) |
90×70×19 or 100×80×30(Module), or 320×220×90(Desk-top) |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature, CW.
2. Test condition: temperature variation ±2℃, CW.
Ordering Information
|
OS-P |
Package Type |
Operating Wavelength |
Output Power |
LCD Display |
Power Adjustable |
Fiber Type |
Connector |
|
|
M=Module
D=Desk-top
1U=1U Rack
2U=2U Rack
etc |
1310=1310nm
1550=1550nm 1590=1590nm
etc |
1=1mW 10=10mW 50=50mW
etc |
0=Without
1=With |
0=Without
1=With |
S=SM Fiber
P=PM Fiber
M=MM Fiber |
FC/UPC
FC/APC
etc |
