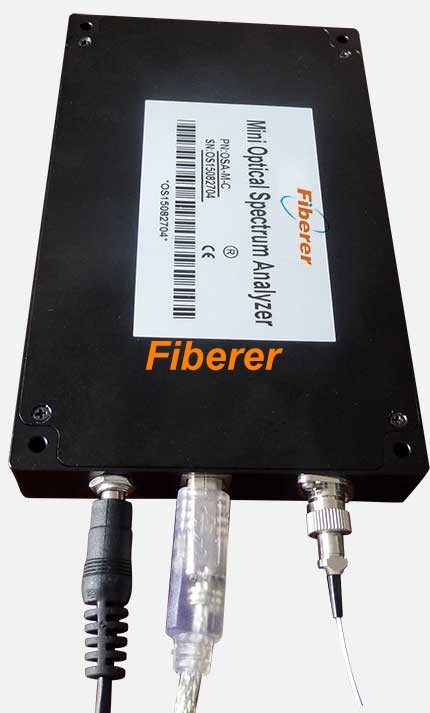

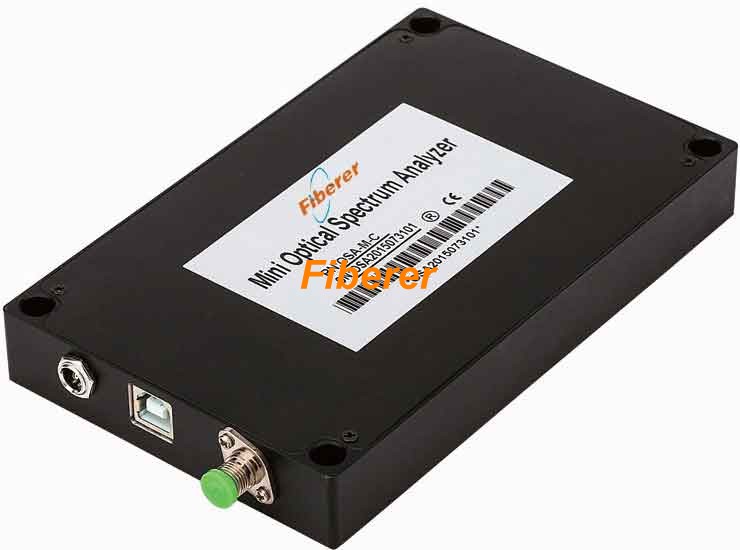

Mini OSA Module (above)
Description:
Mini Optical Spectrum Analyzer (OSA), Wavelength range 1525~1572nm, Wavelength repeatability ±5pm, Wavelength resolution 2~200pm, Sweep time 0.2~10s, Input power range -75~+5dBm. OEM model is well available on customer’s special request.
Applications:
Optical performance analysis
Quasi-static optical sensor interrogation
Test and measurement
Features:
C band operating wavelength range
-70 to +5dBm input power range
Less than 2pm wavelength sampling resolution
GUI PC client software and API
Low cost
Specifications:
|
Parameters |
OSA |
|
Wavelength range (nm) |
1525~1572 |
|
Wavelength repeatability (pm) |
±5 |
|
Wavelength resolution (pm) |
2~200 |
|
Sweep time (s) |
0.2~10 |
|
Input power range (dBm) |
-75~+5 |
|
Connector |
FC/APC |
|
Communication interface |
USB |
|
Software |
GUI software included, API for development |
|
Power supply |
DC 5V, 2A |
|
Operating temperature (℃) |
-10~50 |
|
Dimensions (L×W×H, mm) |
150×95×20 |
Ordering Information
|
OSA |
Package Type |
Wavelength Range |
|
|
M=Module
etc |
C=C band |
