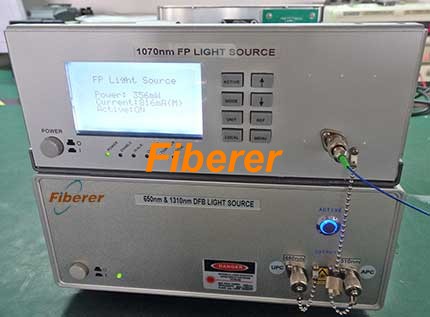

1070 FP and 650 and 1310nm DFB Light Source (above)

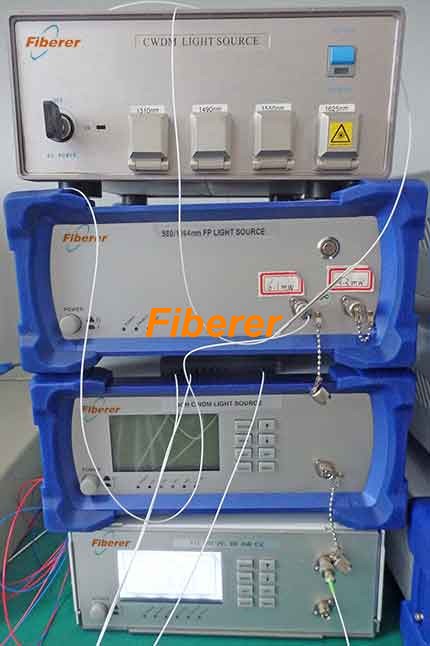

4 Channels CWDM and 980 and 1064 FP Light Source and 4 Channels Desk-top VOA (above)
Description:
1064 nm FP (Fabry-Perot) Light Source, Operating Wavelength 1050-1070, 1030nm, 1050nm, 1060nm, 1064nm, etc, output power 10-100 with Line-width ≤ 3 nm, or output power 10-400 mW with Line width ≤ 0.2 nm. OEM model is well available on customer’s special request.
Applications:
Optical fiber component manufacture & test
Optical communication system test
Features:
High stable output power
Narrow spectrum, single longitudinal mode output
Specifications:
Parameters
FP
Central wavelength (nm)
1050~1070, etc
Output power (mW)
10~100, etc
10~400, etc
Line width (nm)
≤ 3
≤ 0.2
FBG
Without
With
Output power short-term stability (dB)
≤±0.01dB/5 min
Output power long-term stability (dB)
≤±0.03dB/8 hour
Pigtail fiber
1060 Single Mode fiber, etc
Output connector
FC/PC, FC/UPC or FC/APC, etc
Operating temperature (℃)
0 ~ 40
Storage temperature (℃)
-20 ~ 70
Power supply
AC 110/220V±10%, 50Hz, 20W
Dimensions (L×W×H, mm)
90×70×19(Module), or 320×220×90(Desk-top)
Ordering Information
OS-F
Package Type
Operating Wavelength
Output Power
LCD Display
Power Adjustable
Fiber Type
Connector
M=Module D=Desk-top
1030=1030nm 1050=1050nm 1060=1060nm etc
1=1mW 10=10mW 50=50mW
etc
0=Without
1=With
0=Without
1=With
S=SM Fiber
P=PM Fiber
M=MM Fiber
FC/UPC FC/APC
etc
Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.
Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.
Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.
Quality Assurance:
assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and
invoice,match the safety of international business
law.) Customer Reviews
