Description:

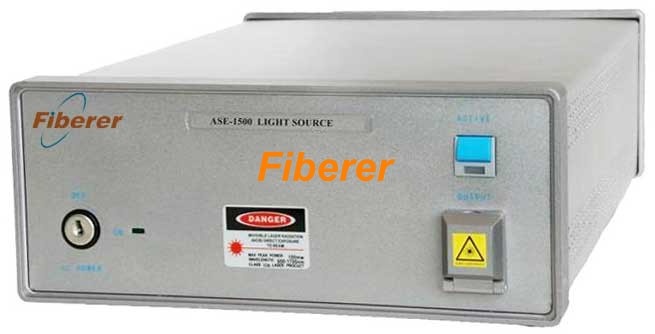

1500nm/1510nm ASE Broadband Light Source, based on Amplified Spontaneous Emission (ASE) laser diode (LD). Center wavelength 1500nm or 1510nm, operating wavelength range 1440 to 1560 nm, 1430 to 1590 nm, etc. Output power 5-10 mW, etc. Spectral density -20~-10 dBm/nm, Degree of Polarization (DOP) ≤5%. OEM model is well available on customer’s special request.
Applications:
Optical fiber sensing
PLC, CWDM, DWDM, Film testing
Optical fiber grating testing
Optical fiber measurement equipments
Fiber Optic Gyroscope (FOG)
Optical coherence tomography (OCT)
Features:
High output power
High spectral stability
Broadband spectrum output
Low noise
Low polarization and low coherent
Specifications:
|
Parameters |
ASE-1500 |
|
Operating wavelength (nm) |
1440~1560, etc |
|
-3dB spectrum width (nm) |
≥50, etc |
|
Output power (mW) |
5~10, etc |
|
Spectral density (dBm/nm) |
-20 ~ -10 |
|
Spectral stability (dB) |
≤±0.05(5 min) |
|
Output power short-term stability (dB) 1 |
≤±0.01 (5 min) |
|
Output power long-term stability (dB) 2 |
≤±0.03 (8 hour) |
|
Degree of Polarization (DOP) |
≤5% |
|
Pigtail fiber |
SMF-28 |
|
Connector type |
FC/PC, FC/UPC or FC/APC, etc |
|
Operating temperature (℃) |
0 ~ +65 (-20 ~ +65 available) |
|
Storage temperature (℃) |
-20 ~ +70 |
|
Relative humidity (%) |
20~80 |
|
Power Supply |
110/220V AC, +5V or +3.3V DC; >500mA; △V＜1% |
|
Maximal Power Consumption |
10 W |
|
Dimension (L×W×H, mm) |
90×70×19(Module), or 320×220×90(Desk-top) |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature, CW.
2. Test condition: temperature variation ±2℃, CW.

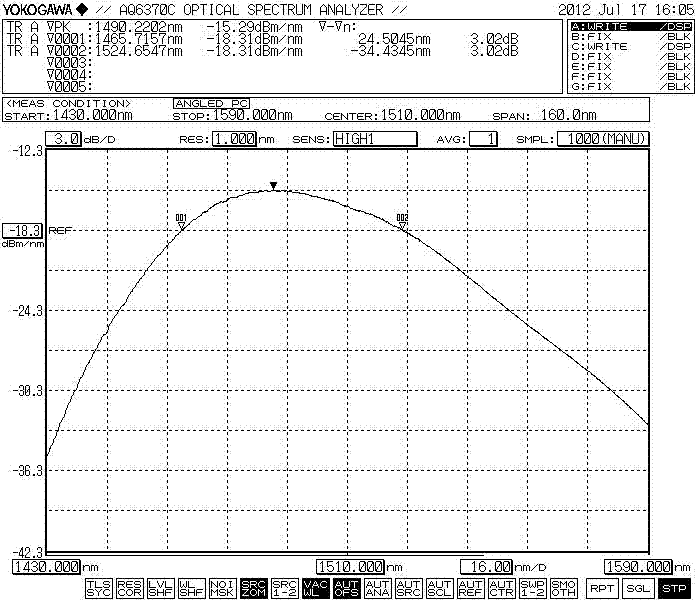

Typical Spectrum
Ordering Information
|
ASE-1500 |
Package Type |
Output Power |
Connector |
|
|
M=Module
D=Desk-top |
10=10mW
20=20mW
etc |
FC/UPC
FC/APC
etc |
