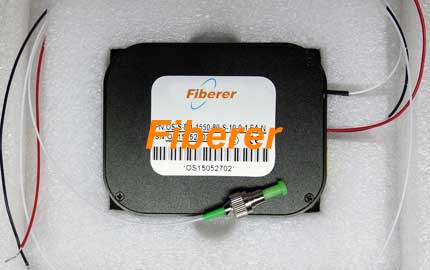

1550nm SLED Light Source Module (above)

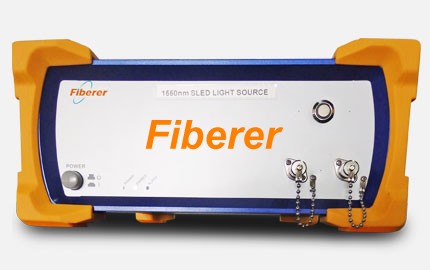

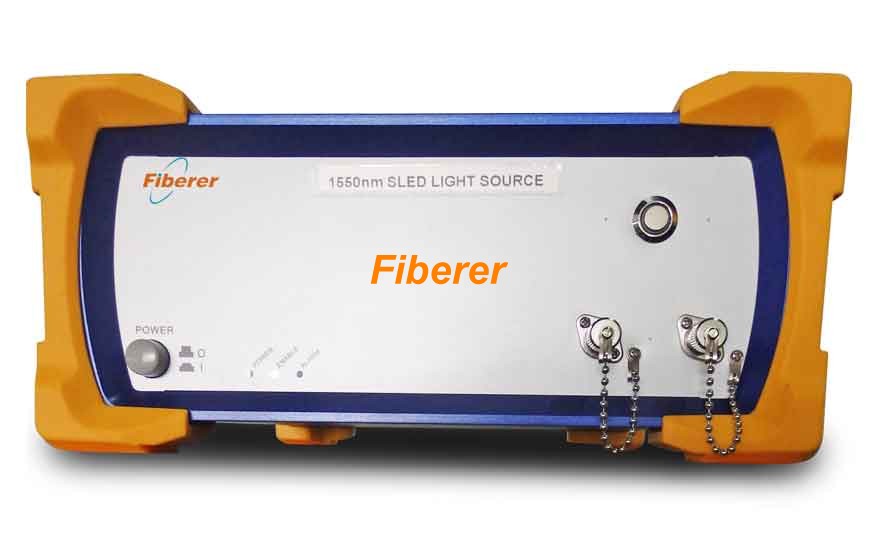

1550 SLED and 1650nm DFB Light Source (above)
Description:
1550nm SLED Broadband Light Source, Central wavelength 1550 ±10 nm, -3dB spectrum width ≥ 50 nm, Output power1, 5, 10, 20, 30 mW etc, Ripple ≤0.2 dB. OEM model is well available on customer’s special request.
Applications:
Optical fiber sensing
Optical fiber passive component spectrum testing
Optical fiber grating, filter testing
Optical fiber measurement equipments
Features:
High output power
High stability
Broadband spectrum output
Specifications:
|
Parameters |
1550 SLED |
|
Central wavelength (nm) |
1550±10, etc |
|
-3dB spectrum width (nm) |
≥50, etc |
|
Output power (mW) |
1, 5, 10, 20, 30, etc |
|
Ripple (dB) |
≤0.2 |
|
Output power short -term stability 1 |
≤±0.01 dB/15 min |
|
Output power long- term stability 2 |
≤±0.03 dB/8 hour |
|
Operating mode |
CW |
|
Fiber pigtail |
Single mode SMF-28 |
|
Output connector |
FC/PC, FC/UPC or FC/APC, etc |
|
Operating temperature (℃) |
0 ~ 40 |
|
Storage temperature (℃) |
-20 ~ 70 |
|
Power supply |
110/220V AC±10%, 50Hz, 20W |
|
Dimensions (L×W×H, mm) |
90×70×19(Module), or 320×220×90(Desk-top) |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature, CW.
2. Test condition: temperature variation ±2℃, CW.

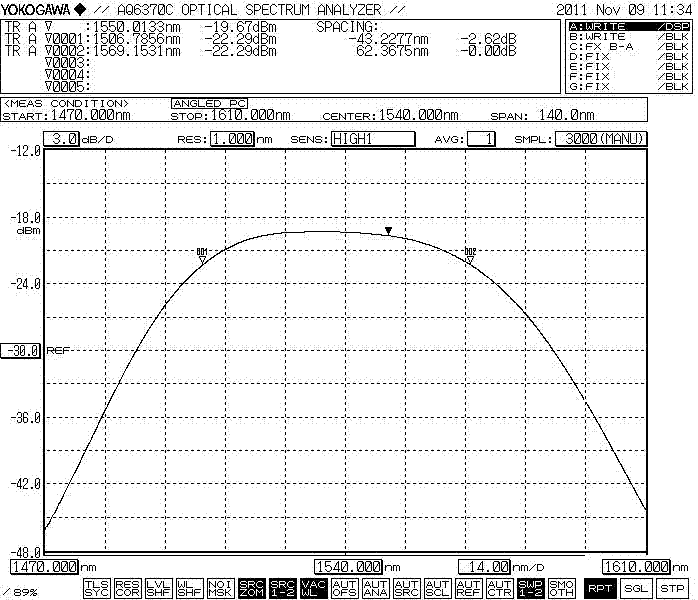

Typical Spectrum
Ordering Information
|
OS-S |
Package Type |
Operating Wavelength |
Output Power |
LCD Display |
Power Adjustable |
Fiber Type |
Connector |
|
|
M=Module
D=Desk-top |
1310=1310nm
1480=1480nm 1550=1550nm
etc |
1=1mW 10=10mW 50=50mW
etc |
0=Without
1=With |
0=Without
1=With |
S=SM Fiber
P=PM Fiber
M=MM Fiber |
FC/UPC FC/APC
etc |
