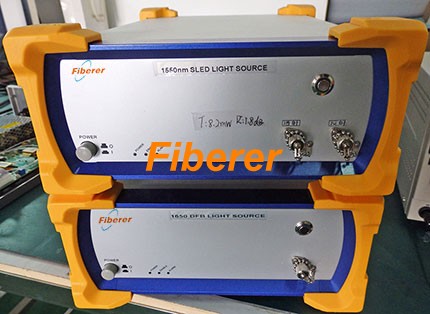

1550 SLED and 1650nm DFB Light Source (above)
Description:

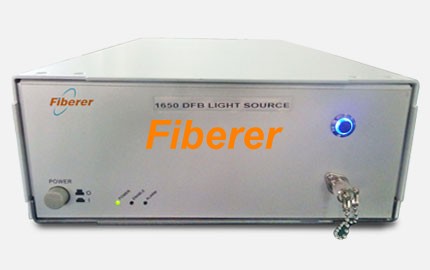

1650nm DFB Light Source, central wavelength 1650±2nm, -3dB spectrum width ＜10MHz, Output power 0-10dBm. OEM model is well available on customer’s special request.
Applications:
Optical fiber component manufacture & test
Optical communication system test
Features:
High stable output power
Narrow spectrum, single longitudinal mode output
Specifications:
|
Parameters |
DFB |
|
Central wavelength (nm) |
1650±2 |
|
-3dB spectrum width (HZ) |
＜10M |
|
Output power (dBm) |
0~10 |
|
Short term stability 1 (dB) |
＜±0.005dB/5 min |
|
Long term stability 2 (dB) |
＜±0.01dB/8 hour |
|
Operating mode |
CW, Internal modulate, external modulate |
|
Fiber pigtail |
SM-28 Fiber or PM fiber |
|
Output connector |
FC/PC, FC/UPC or FC/APC |
|
Operating temperature(℃) |
0 ~ 40 |
|
Storage temperature(℃) |
-20 ~ 70 |
|
Power supply |
AC 110/220V±10%, 50Hz, 20W |
|
Dimensions (L×W×H, mm） |
90×70×20(Module), or 320×220×90(Desk-top) |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature, CW.
2. Test condition: temperature variation ±2℃, CW.

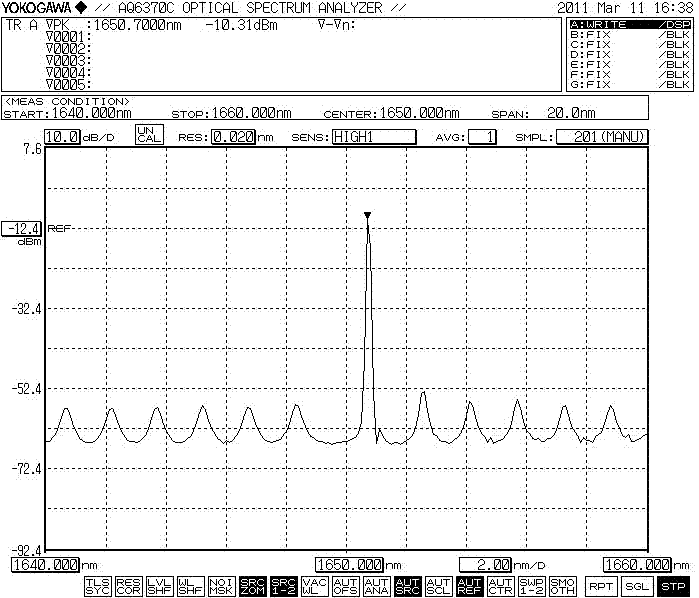

Typical Spectrum
Ordering Information:
|
OS-D |
Package Type |
Operating Wavelength |
Output Power |
Fiber Type |
Connector |
|
|
M=Module
D=Desk-top |
165=1650nm |
00=0dBm 10=10dBm |
SM: SM Fiber
PM: PM Fiber |
FC/UPC FC/APC
etc |
Note: LCD display is to display the light source’s working wavelength and output power.
