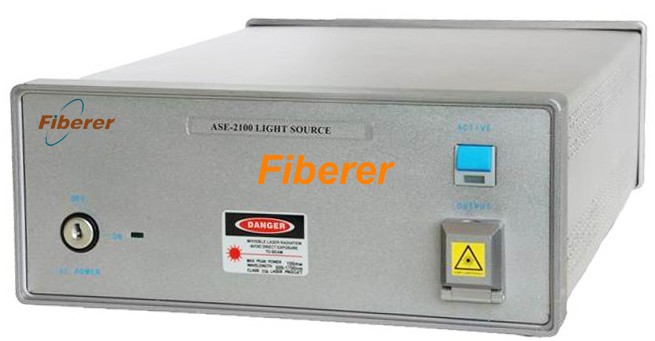

2070/2100nm ASE Broadband Light Source (above)
Description -2070/2100nm ASE Light Source:
2070/2100nm ASE Broadband Light Source, based on Amplified Spontaneous Emission (ASE) laser diode (LD), center wavelength 2070+/-10 nm, output power≥10 mW, -20 dB bandwidth ≥100 nm, output power stability ±5% (30 min warm up). OEM model is well available on customer’s special request.
Applications - 2070/2100nm ASE Light Source:
Passive optical component testing
Gas spectral sensing and imaging
Biomedical applications
Scientific measurement
Features - 2070/2100nm ASE Light Source:
Broad bandwidth
Near IR wavelength range
Customized center wavelength
High output power
Specifications - 2070/2100nm ASE Light Source:
|
Parameters |
ASE-2100 |
|
Center wavelength (nm) |
2070+/-10 |
|
Output power (mW) |
≥10 |
|
Bandwidth (-20 dB) |
≥100 nm |
|
Output power stability (dB) |
±5% (30 min warm up) |
|
Output Fiber |
SMF-28 |
|
Operating temperature (℃) |
5~+35 |
|
Storage temperature (℃) |
-10 ~+65 |
|
Relative humidity (%) |
20~80 |
|
Power Supply |
110/220V AC, +5V DC; >500mA; △V＜1% |
|
Dimensions (L×W×H, mm) |
320×220×90(Desk-top), 1U Rack, etc |

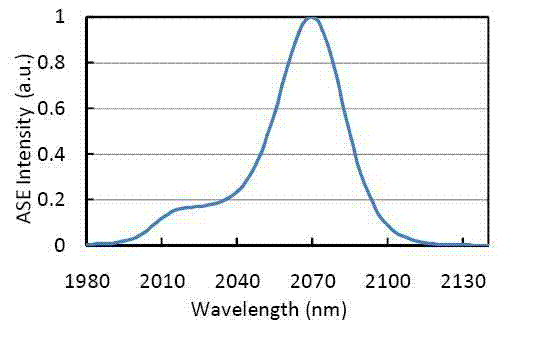

Typical Spectrum
Ordering Information - 2070/2100nm ASE Light Source
|
ASE-2100 |
Package Type |
Output Power |
Connector |
|
|
D=Desk-top
1U=1U Rack
etc |
10=10mW
etc |
FC/UPC
FC/APC |
