4 Channels Desk-top Optical Power Meter (OPM) Specification

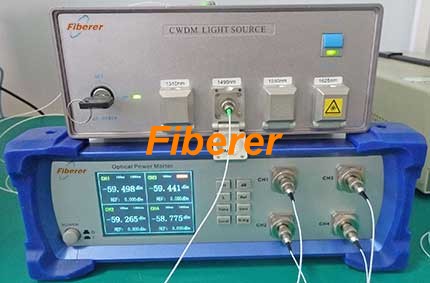

4 Channels CWDM Light Source and Optical Power Meter (above)
Description:
4 Channels Desk-top Optical Power Meter (OPM), Wavelength range 600~1100, 800~1700nm, Measurement range -90 ~ +20dBm, Accuracy ±3%, Average time 50~500ms, Measurement units dB/dBm/mW/uW/nW/pW, Measurement resolution 0.001dB, Display resolution 0.001/0.01/0.1dB. OEM model is well available on customer’s special request.
Applications:
Optical communication manufacture and testing
Engineering maintenance & testing
R & D and lab application
Features:
Quick response
Arg dynamic
Multiple communication interfaces
Excellent stability
Specifications:
Parameters
OPM-D
Wavelength range (nm)
600~1100, 800~1700, etc
Detector type
Si, InGaAs
Measurement range (dBm)
-90 ~ +20
Accuracy
±3%
Average time (ms)
50~500
Measurement units
dB/dBm/mW/uW/nW/pW
Measurement resolution (dB)
0.001
Display resolution (dB)
0.001/0.01/0.1
Communication interface
RS-232/USB/LAN
Fiber type
SM-28 Fiber or PM fiber
Output connector
FC/PC, FC/UPC or FC/APC, etc
Operating temperature (℃)
0 ~ 50
Storage temperature (℃)
-20 ~ 70
Power supply
AC 90~250V, 50~60Hz, 20W
Dimensions (L×W×H, mm)
360×300×110, 430×340×95
Ordering Information
OPM
Package Type
Channel Number
Wavelength Range
Measurement Range
Connector
H=Handheld D=Desk-top
1U=1U Rack
2U=2U Rack
etc
1=1 Channel
2=2 Channels
4=4 Channels
etc
A=600~1100nm
B=800~1700nm
etc
A=-60~+20dBm
B=-75~+3dBm
C=-90~+3dBm
etc
FC/UPC
FC/APC
etc
Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.
Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.
Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.
Quality Assurance:
assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and
invoice,match the safety of international business
