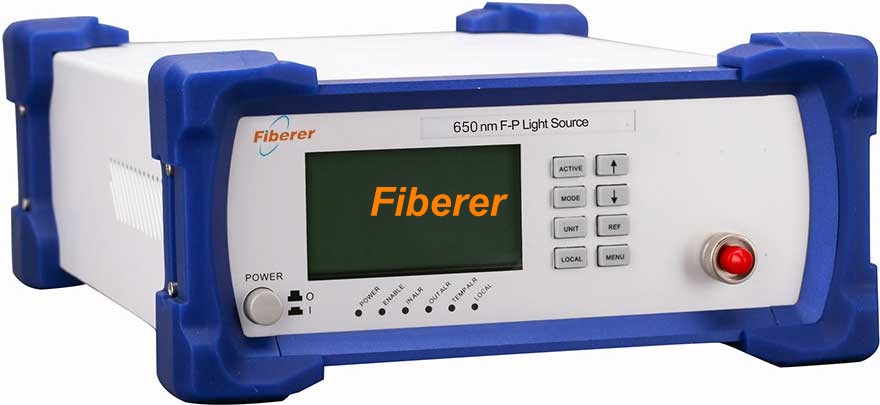

650nm FP Light Source (above)
Description:
650nm FP (Fabry-Perot) Light Source, Central wavelength 650 ± 10 nm, Spectral width (FWHM) <0.3nm, Output power >1mW. OEM model is well available on customer’s special request.
Applications:
Optical fiber component manufacture & test
Optical communication system test
Features:
High stable output power
Narrow spectrum, single longitudinal mode output
Specifications:
|
Parameters |
FP |
|
Central wavelength (nm) |
650 ± 10 |
|
Spectral width (FWHM) (nm) |
<0.3 |
|
Output power (mW) |
>1 |
|
Output power short-term stability (dB) 1 |
＜±0.02dB/5 min |
|
Output power long-term stability (dB) 2 |
＜±0.05dB/8 hour |
|
Fiber pigtail |
Single Mode Fiber or PM Fiber |
|
Output connector |
FC/PC, FC/UPC or FC/APC, etc |
|
Operating temperature (℃) |
0 ~ 40 |
|
Storage temperature (℃) |
-20 ~ 70 |
|
Power supply |
AC 110/220V±10%, 50Hz, 20W |
|
Dimensions (L×W×H, mm) |
90×70×19(Module), or 320×220×90(Desk-top) |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature, CW.
2. Test condition: temperature variation ±2℃, CW.
Ordering Information
|
OS-F |
Package Type |
Operating Wavelength |
Output Power |
LCD Display |
Power Adjustable |
Fiber Type |
Connector |
|
|
M=Module
D=Desk-top |
650=650nm
850=850nm 1050=1050nm
etc |
1=1mW 10=10mW 50=50mW
etc |
0=Without
1=With |
0=Without
1=With |
S=SM Fiber
P=PM Fiber
M=MM Fiber |
FC/UPC FC/APC
etc |
