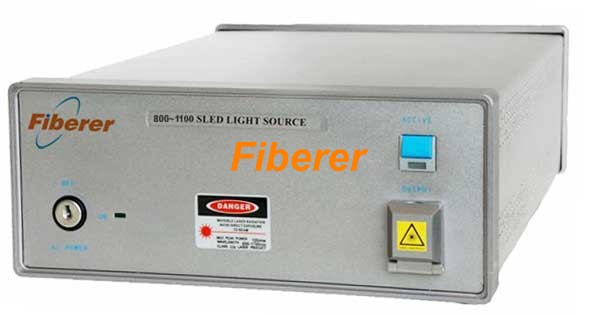

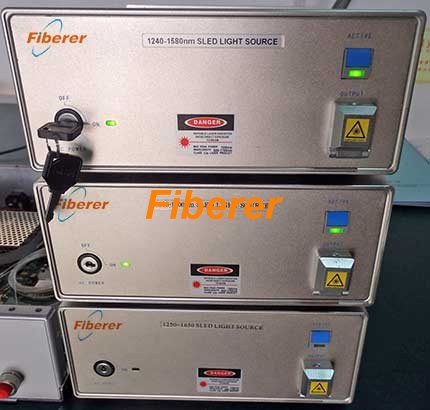

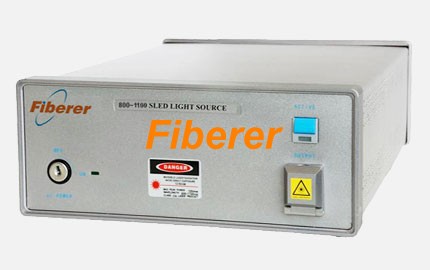

800-1100 and 1240-1580 and 1250-1650nm SLED Light Source (above)
Description:
800-1100nm SLED Broadband Light Source, operating wavelength range 800-1120nm, 800-1100nm, etc. Output power ≥ 10 mW, Power spectral density is --30 to -25 dBm/nm. OEM model is well available on customer’s special request.
Applications:
Optical fiber sensing
Optical fiber passive component spectrum testing
Optical fiber grating, filter testing
Optical fiber measurement equipments
Features:
High output power
High spectral stability
300nm broadband spectrum
Specifications:
|
Parameter |
SLED |
|
Operating wavelength (nm) |
800~1100, 800~1120, etc |
|
Spectrum width (nm) |
≥ 300 |
|
Output power (mW) |
≥10 |
|
Power spectral density (dBm/nm) |
-30 ~ -25 |
|
Ripple (dB) |
≤0.2 |
|
Output power short term stability (dB) 1 |
≤±0.02/15 min |
|
Output power long term stability (dB) 2 |
≤±0.04/8 hour |
|
Operating mode |
CW |
|
Fiber pigtail |
Single mode HI1060 |
|
Output connector |
FC/PC, FC/UPC or FC/APC, etc |
|
Operating temperature (℃) |
0 ~ 40 |
|
Storage temperature (℃) |
-20 ~ 70 |
|
Power supply |
AC 110/220V±10%, 50Hz, 20W |
|
Dimensions (L×W×H, mm) |
320×220×90(Desk-top), or OEM |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature, CW.
2. Test condition: temperature variation ±2℃, CW.

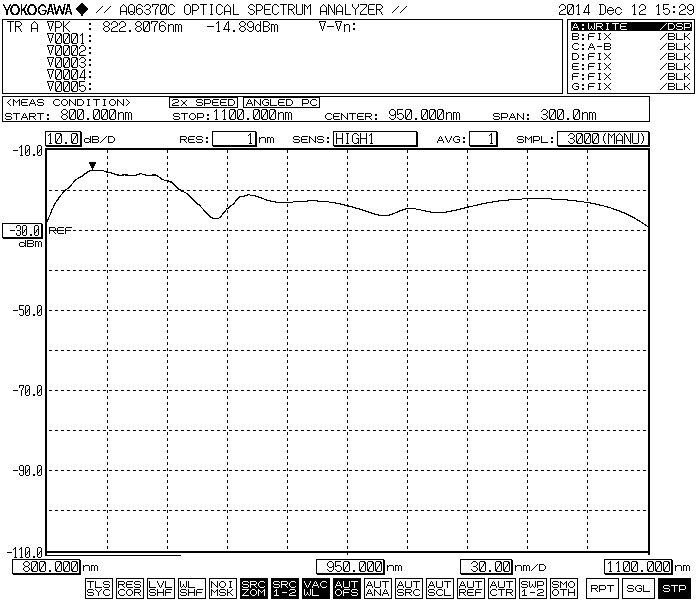

Typical Spectrum
Ordering Information
|
SLED-EB |
Package Type |
Operating Wavelength |
Power Spectral Density |
Connector |
|
|
D=Desk-top
etc |
1=1250-1650nm
2=1260-1620nm
3=1220-1700nm
4=800-1100nm
etc |
45= -45(dBm/nm)
30= -30(dBm/nm)
20= -20(dBm/nm)
etc |
FC/UPC
FC/APC
etc |
