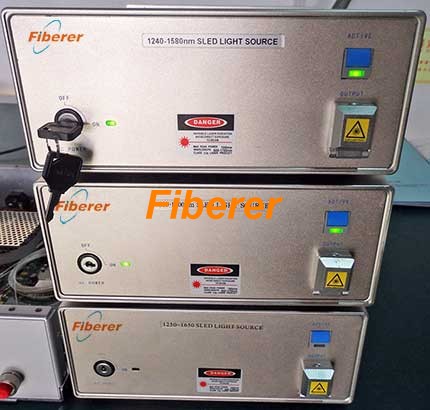

800-1100 and 1240-1580 and 1250-1650nm SLED Light Source (above)
Description:

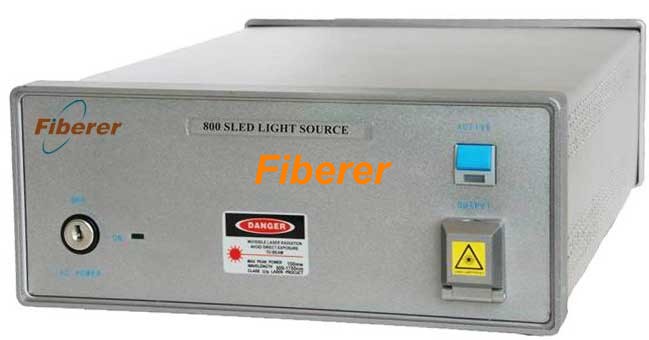

800nm SLED Broadband Light Source, central wavelength 800±20 nm, -3dB spectrum width ≥ 25 nm, output power ≥ 4 mW. Other Central wavelengths are available like 850 nm, 880 nm, etc. OEM model is well available on customer’s special request.
Applications:
Optical fiber sensing
Optical fiber passive component spectrum testing
Optical fiber grating, filter testing
Optical fiber measurement equipments
Features:
Selected wavelength
High spectral stability
Broadband light source
Specifications:
|
Parameters |
800 SLED |
|
Radiation source |
SLED |
|
Central wavelength (nm) |
800±20 |
|
-3dB spectrum width (nm) |
≥25 |
|
Output power (mW) |
≥4 |
|
Output power short-term stability (dB) 1 |
≤±0.01dB/15 min |
|
Output power long-term stability (dB) 2 |
≤±0.03dB/8 hour |
|
Operating mode |
CW, internal modulate, external modulate |
|
Fiber pigtail |
Single mode SMF-28 |
|
Output connector |
FC/PC, FC/UPC or FC/APC, etc |
|
Operating temperature (℃) |
0 ~ 40 |
|
Storage temperature (℃) |
-20 ~ 70 |
|
Power supply |
AC 110/220V±10%, 50Hz, 20W |
|
Dimensions (L×W×H, mm) |
90×70×19(Module); 320×220×90(Desk-top) |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature, CW.
2. Test condition: temperature variation ±2℃, CW.

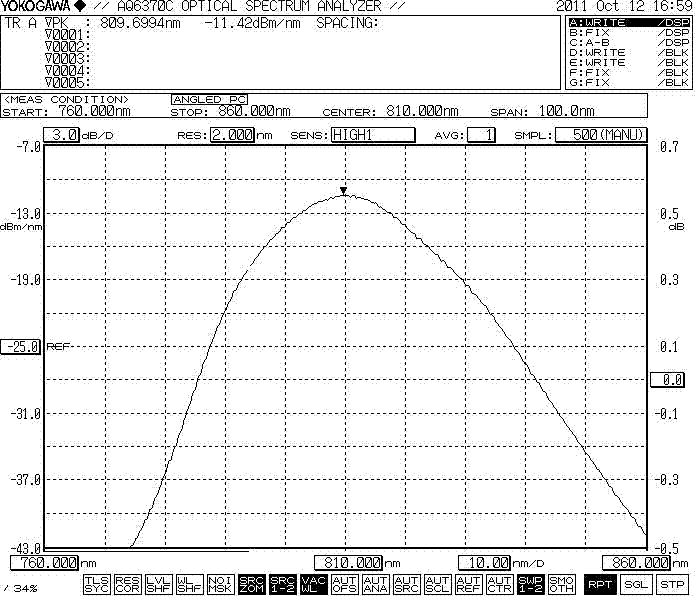

Typical Spectrum
Ordering Information
|
OS-S |
Package Type |
Operating Wavelength |
Output Power |
LCD Display |
Power Adjustable |
Fiber Type |
Connector |
|
|
M=Module
D=Desk-top
1U=1U Rack
2U=2U Rack
etc |
800=800nm
850=850nm 880=880nm etc |
1=1mW 10=10mW 50=50mW
etc |
0=Without
1=With |
0=Without
1=With |
S=SM Fiber
P=PM Fiber
M=MM Fiber |
FC/UPC
FC/APC
etc |
