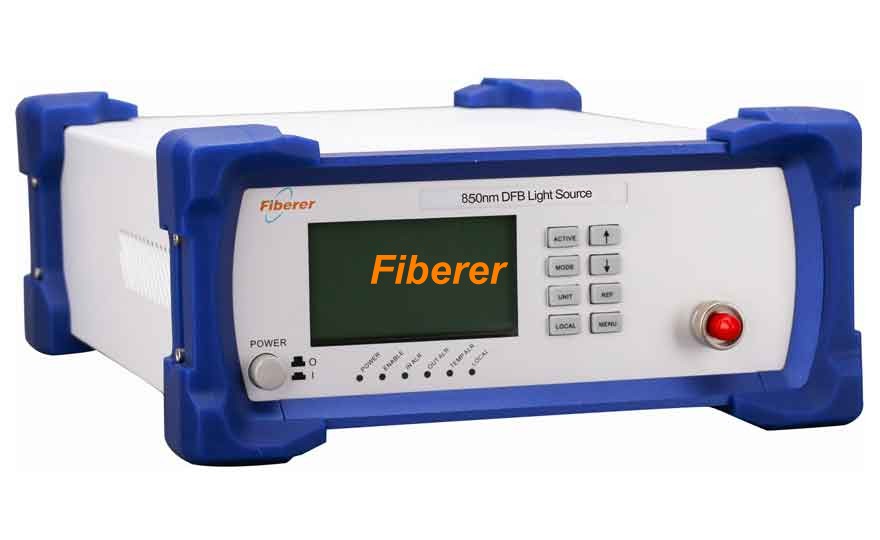

850nm DFB Light Source, central wavelength 850±3 nm, spectral width (FWHM) ≤10 MHz, output power 1-50 mW. Other central wavelengths are available like 840 nm, 880nm, etc. OEM model is well available on customer’s special request.
Applications:
Optical fiber component manufacture & test
Optical communication system test
Optical fiber sensing
Features:
High stable output power
Narrow spectrum, single longitudinal mode output
Specifications:
Parameters
DFB
Central wavelength (nm)
850±3
Spectral width (FWHM), (Hz)
≤10M
Output power (mW)
1~50
Output power short-term stability (dB)
≤±0.01dB/5 min
Output power long-term stability (dB)
≤±0.02dB/8 hour
Fiber pigtail
HI780 or SM800 Single Mode Fiber or PM Fiber
Output connector
FC/PC, FC/UPC or FC/APC, etc
Operating temperature (℃)
0 ~ 40
Storage temperature (℃)
-20 ~ 70
Power supply
AC 110/220V±10%, 50Hz, 20W
Dimensions (L×W×H, mm)
90×70×19(Module), or 320×220×90(Desk-top)

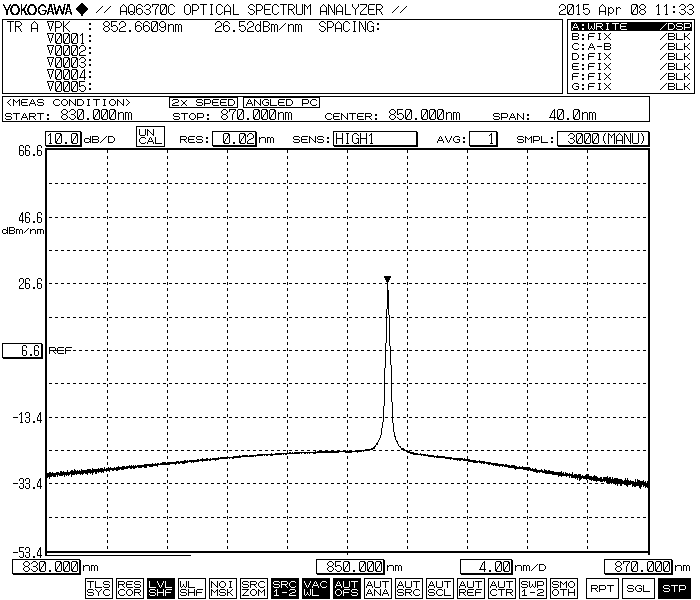

Typical Spectrum
850nm DFB Light Source Spectrum 15mW (above)
Ordering Information
OS-D
Package Type
Operating Wavelength
Output Power
LCD Display
Power Adjustable
Fiber Type
Connector
M=Module D=Desk-top
1U=1U Rack
2U=2U Rack
etc
840=840nm 850=850nm 880=880nm etc
1=1mW 10=10mW 50=50mW
etc
0=Without
1=With
0=Without
1=With
S=SM Fiber
P=PM Fiber
M=MM Fiber
FC/UPC FC/APC
etc
