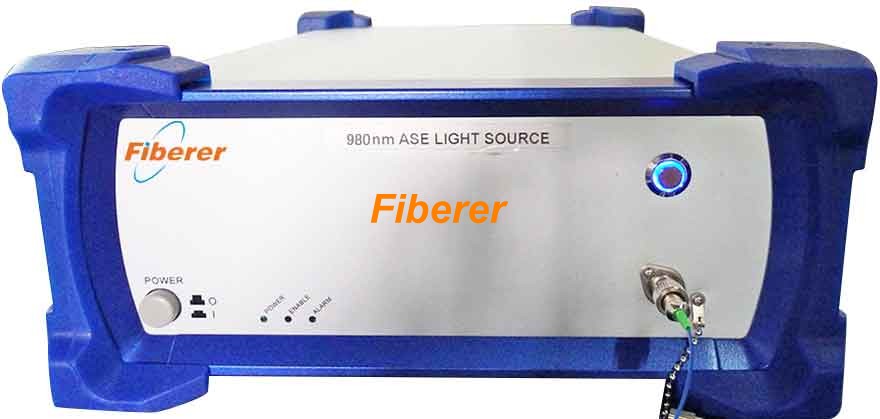

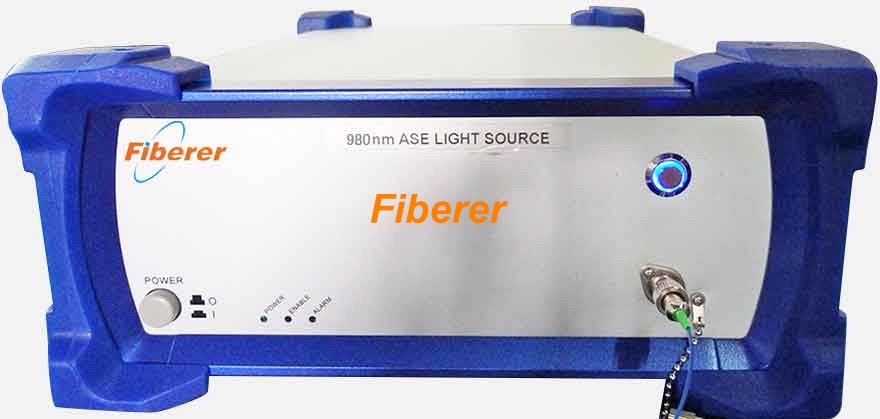

980nm ASE and 850nm SLED Light Source (above)
Description:
905/980nm ASE Broadband Light Source, central wavelength 905 nm, 980 nm, operating wavelength range 880-930nm, 960-1000nm, output power ≥ 5 mW, power spectral density (PSD) ≥ -17 dBm/nm. OEM model is well available on customer’s special request.
Applications:
Optical fiber sensing
WDM, Film testing
Optical fiber measurement equipments
Fiber Optic Gyroscope (FOG)
Optical coherence tomography (OCT)
Features:
High output power
High spectral stability
Broadband spectrum output
Low noise
Low polarization and low coherent
Specifications:
|
Parameters |
ASE-905 |
ASE-980 |
|
Operating wavelength (nm) |
880~930 |
960~1000 |
|
Output power (mW) |
5 |
7 |
|
Power spectral density (dBm/nm) |
≥-17 |
|
Spectral stability (dB) |
≤±0.05(5 min) |
|
Output power short-term stability (dB) 1 |
≤±0.02(5 min) |
|
Output power long-term stability (dB) 2 |
≤±0.03(8 hour) |
|
Degree of Polarization (DOP) |
≤5% |
|
Pigtail fiber |
SMF-28 |
|
Connector type |
FC/PC, FC/UPC or FC/APC, etc |
|
Operating temperature (℃) |
0 ~ +65 |
|
Storage temperature (℃) |
-20 ~+70 |
|
Relative humidity (%) |
20~80 |
|
Power Supply |
110/220V AC, +5V DC, Driving current >500mA; △V＜1% |
|
Maximal Power Consumption |
10 W |
|
Dimension (L×W×H, mm) |
100×80×20(Module), or 320×220×90(Desk-top) |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature, CW.
2. Test condition: temperature variation ±2℃, CW.

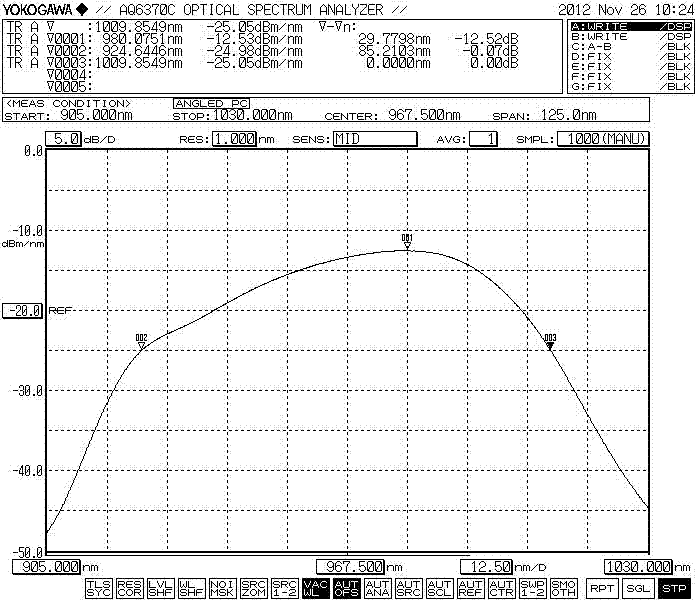

Typical Spectrum
Ordering Information
|
ASE-905/980 |
Package Type |
Working Wavelength |
Output Power |
Fiber Type |
Connector |
|
|
M=Module
D=Desk-top |
A= 880~930nm
B=960~1000
etc |
10=10mW
20=20mW
etc |
S=SM Fiber
P=PM Fiber
etc |
FC/UPC
FC/APC
etc |
