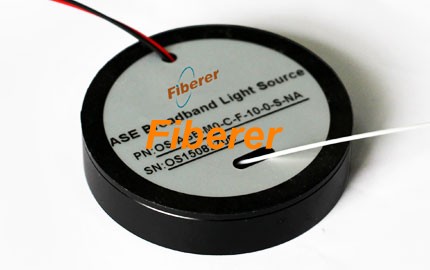

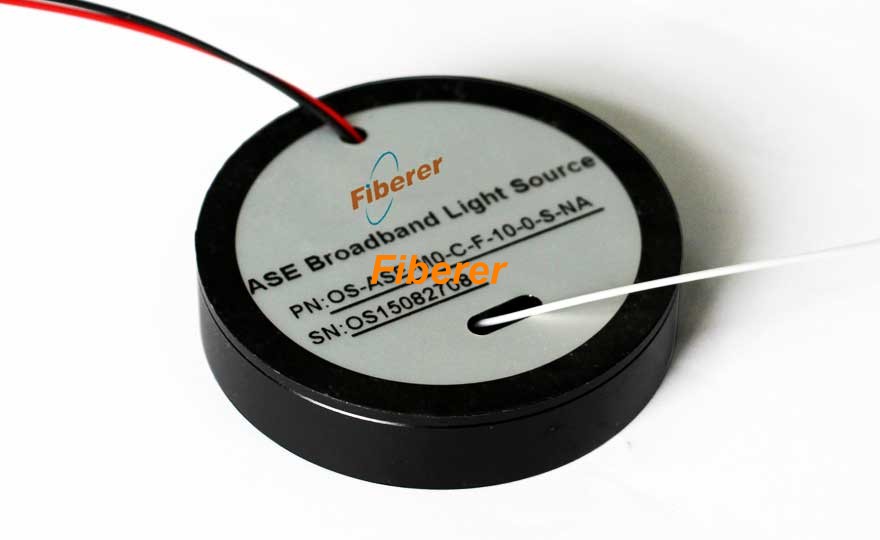

ASE C Band Broadband Light Source Mini Module (above)

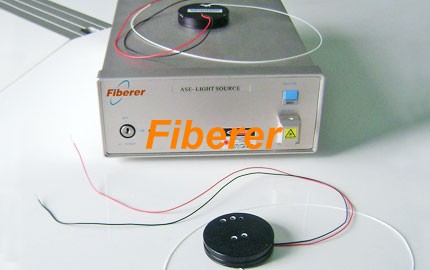

ASE C Band Broadband Light Source in Desk-top and Mini Module Package (above)
Description:
ASE C Band Broadband Light Source Mini Module for Fiber Optic Gyroscope (FOG) and Optical coherence tomography (OCT), etc. Operating wavelength range 1525-1565nm without GFF flatness with Output power 7-15 dBm, and 1527-1565nm with GFF flatness with Output power 7-13 dBm. Spectral density -20 to -10 dBm/nm, Degree of Polarization (DOP) ≤5%. OEM model is well available on customer’s special request.
Applications:
Fiber Optic Gyroscope (FOG)
Optical coherence tomography (OCT)
Features:
High output power
High spectral stability
Broadband spectrum output
Low noise
Low polarization and low coherent
Specifications:
|
Parameters |
ASE-C |
|
GFF |
No |
GFF |
|
Operating wavelength (nm) |
1525~1565, or OEM |
1527~1565, or OEM |
|
Flatness (dB) |
No |
<2 |
|
Output power (dBm) |
7~15 |
7~13 |
|
Spectral density (dBm/nm) |
-20 ~ -10 |
|
Spectral stability (dB) |
≤±0.05(5 min) |
|
Output power short-term stability (dB) |
≤±0.01 (5 min) |
|
Output power long-term stability (dB) |
≤±0.03 (8 hour) |
|
Extinction Ratio (dB) |
25, 28, 30, 35, 40, 43, etc |
|
Degree of Polarization (DOP) |
≤5% |
|
Pigtail fiber |
SMF-28 or PM Fiber |
|
Connector type |
FC/PC, FC/UPC or FC/APC, etc |
|
Operating temperature (℃) |
-20 ~ +65 (-40 ~ +65 available) |
|
Storage temperature (℃) |
-50 ~+70 |
|
Relative humidity (%) |
20~80 |
|
Power Supply |
+5V or +3.3V DC; >500mA; △V＜1% |
|
Maximal Power Consumption |
3 W |
|
Dimensions (D×H, mm) |
Φ 60×12 |
Typical Spectrum

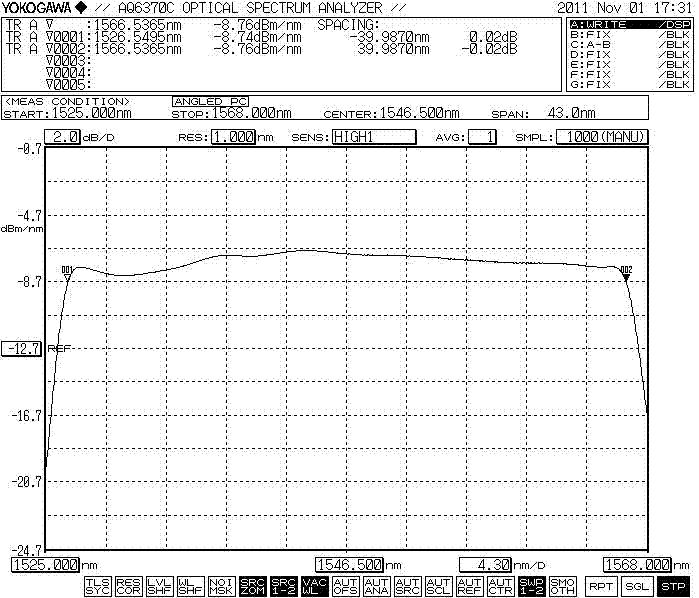

10dBm output spectrum without GFF (above)

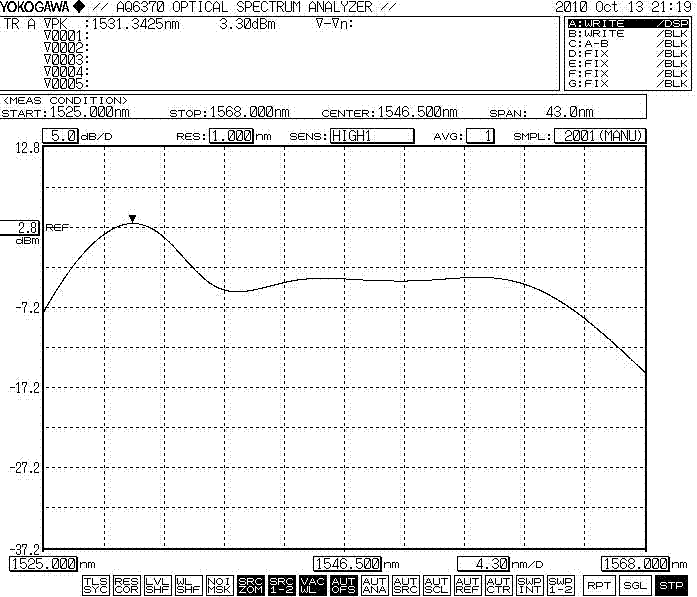

13dBm output spectrum with GFF (above)
Ordering Information
|
ASE-C |
Package Type |
GFF |
Output Power |
Extinction Ratio |
Fiber Type |
Connector |
|
|
M=Mini Module |
G=With GFF
N=Without GFF |
10=10mW
20=20mW
etc |
0=SM
25=25dB
28=28dB
etc |
S=SM Fiber
P=PM Fiber |
FC/UPC
FC/APC |
