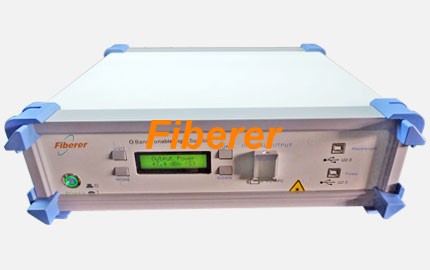

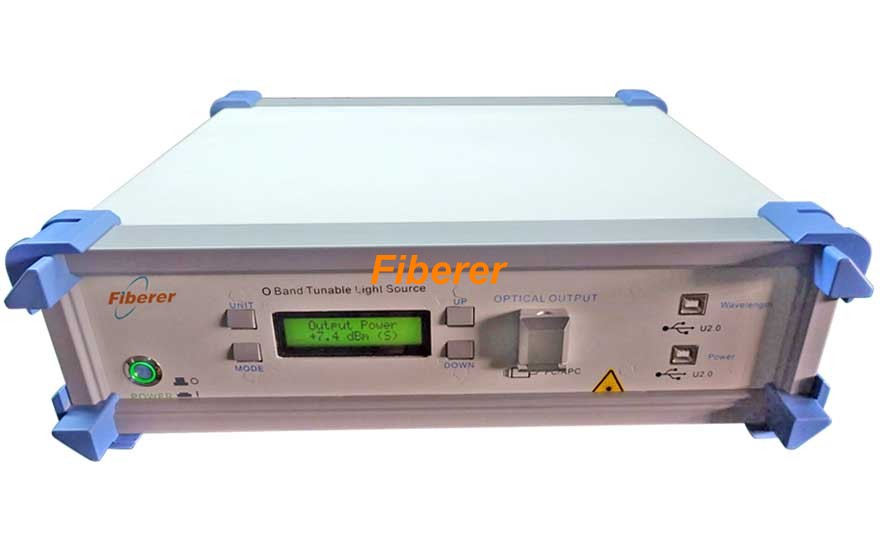

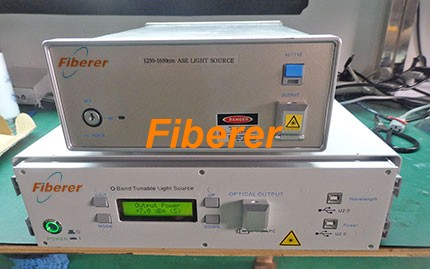

Low DOP 1250-1650nm ASE and O Band Wavelength Tunable Light Source (above)
Description:
O Band Wavelength Tunable Light Source, central wavelength 1300±10 nm, power output ≥ 10 mW, seamlessly continuously tuning range ≥ 50 nm, tuning speed adjustable up to 100 nm/s, wavelength resolution adjustable up to 12.5 pm, wavelength repeatability ± 20 pm, linewidth < 20 pm, SMSR > 70 dB. OEM model is well available on customer’s special request.
Applications:
Optical amplifier testing
Tunable laser grids
DWDM transmission testing
Fiber characterization
Transmitter and receiver testing
Features:
Narrow line-width
High side-mode suppression ratio
Wide tuning range
Linear wavelength tuning
Adjustable tuning speed
Adjustable resolution
Specifications:
|
Parameters |
O-band |
|
Central Wavelength (nm) |
1300±10 |
|
Tuning Range (nm) |
≥ 50 (seamlessly continuously tuning) |
|
Tuning speed (nm/s) |
Adjustable: up to 100 |
|
Power Output (mW) |
≥ 10 |
|
Linewidth (pm) |
< 20 |
|
SMSR (dB) |
> 70 |
|
Wavelength Resolution (pm) |
Adjustable: up to 12.5 |
|
Wavelength Repeatability (pm) |
±20 |
|
Wavelength Stability (pm) |
±30 |
|
Polarization State |
Depolarized |
|
Fiber pigtail |
SM-28 fiber or PM fiber |
|
Output connector |
FC/PC, FC/UPC or FC/APC, etc |
|
Operating temperature (℃) |
10 ~ 40 |
|
Storage temperature (℃) |
-20 ~ 70℃ |
|
Power supply |
+5V DC; >2A; △V＜1%(Module); AC 110/220V±10%, 50Hz, 20W(Desk-top) |
|
Dimensions (L×W×H, mm) |
100×80×23 (Module), or 320×220×90(Desktop) |

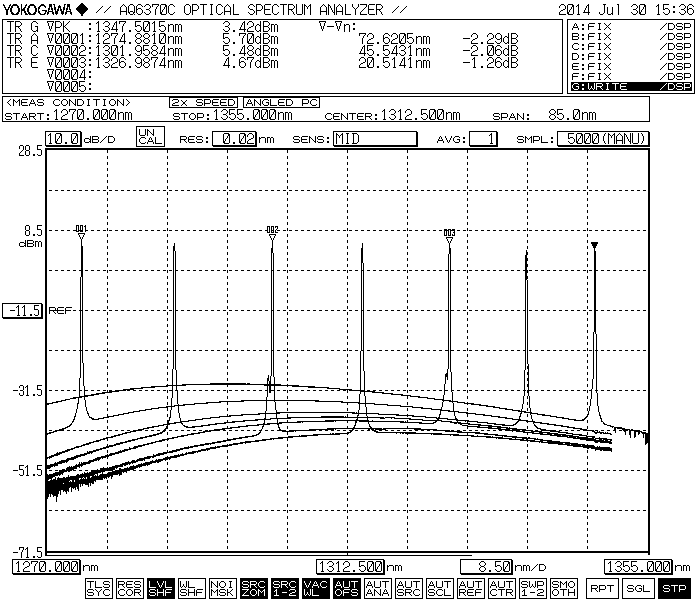

Typical Spectrum
O Band Wavelength Tunable Light Source Spectrum (above)
Ordering Information
|
OS-WT |
Package Type |
Operating Wavelength |
Output Power |
LCD Display |
Power Adjustable |
Fiber Type |
Connector |
|
|
M=Module
D=Desk-top |
O=O band |
5=5mW 10=10mW
etc |
0=Without
1=With |
0=Without
1=With |
S=SM Fiber
P=PM Fiber |
FC/UPC
FC/APC
etc |
Note: LCD display is to display the light source’s working wavelength and output power.
